SKF 32-5R Ball Screw
New
In stock1 unitReady to ship
SKF Flange Nut Ball Screw ensures efficient load handling with a dynamic load rating of 19.1 kN, 32 mm nominal diameter, and 5 mm lead.
Manufacturer:
SKF
Type:
Flange Nut Ball Screw
Model:
32-5 R
The
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Flange Nut Ball Screw (Model: 32-5 R)
Manufacturer: SKF
Type: Flange Nut Ball Screw
Model: 32-5 R

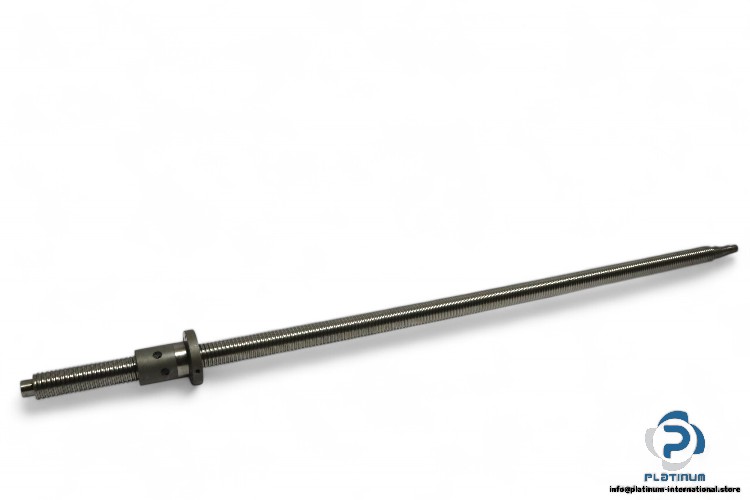

The SKF Flange Nut Ball Screw (Model: 32-5 R) is a high-performance component designed for precise motion control in various mechanical systems. With its 32 mm nominal diameter and 5 mm lead, this ball screw is built to handle heavy loads efficiently.
- Manufacturer: SKF
- Type: Flange Nut Ball Screw
- Model: 32-5 R
- Size: 32 x 5 R
- Nominal Diameter (dN): 32 mm
- Lead (P): 5 mm
- Number of starts: 1
- Direction of Lead: Right-Hand Thread
- Threaded Length: 1135 mm
- Total Screw Length: 1230 mm

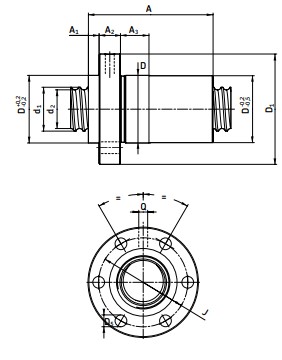

- Dimensions:
- Flange Diameter: 70 mm
- Nut Outer Diameter: 45 mm
- Nut Length: 74 mm
- Flange Thickness: 12 mm
- d2: 28.7 mm
- d1: 31.6 mm
- Basic Load Ratings:
- Dynamic: 19.1 kN
- Static: 40.4 kN
