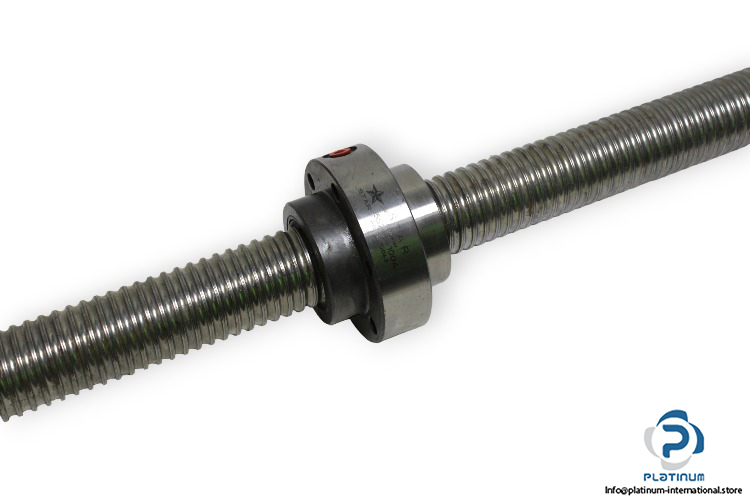

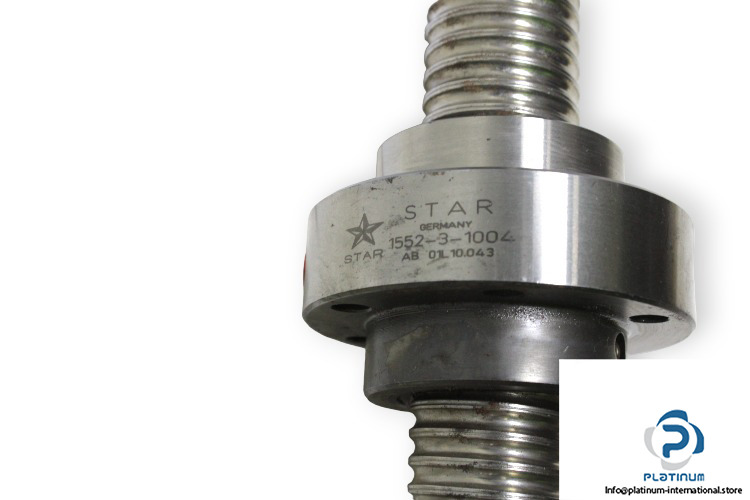

Rexroth Star 1552-3-1004 Adjustable Single NUT SEM-E-S

Name: REXROTH STAR 1552-3-1004 ADJUSTABLE SINGLE NUT SEM-E-S
SKU: 1007763
Price: 1499.00 USD
Availability: LimitedAvailability

Rexroth-star-1552-3-1004-single-nut-SEM-E-S

rexroth-star-1552-3-1004-single-nut-sem-e-s-1

rexroth-star-1552-3-1004-single-nut-sem-e-s-2

Used

Available on request

1 499,00$

Manufacturer:

REXROTH STAR

Type:

Adjustable-preload single nut SEM-E-S with left-hand lead

MNR:

R155231004

Manufacturer

REXROTH STAR

SKU

1007763

Category

Screw & Ball Screws

Condition

Used

32 Adjustable Ball d0:flanged mm Nuts Rexroth screw SEM-E-S Single

Massive Inventory

Global Shipping

Expert Support

Quality Guaranteed

Manufacturer: REXROTH STAR
Type: Adjustable-preload single nut SEM-E-S with left-hand lead
MNR: R155231004

Size: 32 x 5 L x 3.5 – 4
Nominal Diameter d₀: 32 mm
Ball Diameter D_W: 3.5 mm
Number of ball track turns i: 4
Lead P: 5 mm
Direction of Lead: Left-Hand Thread
Dynamic Load Rating C: 21600 N
Static Load Rating C₀: 40000 N
Linear speed V_max: 23 m/min

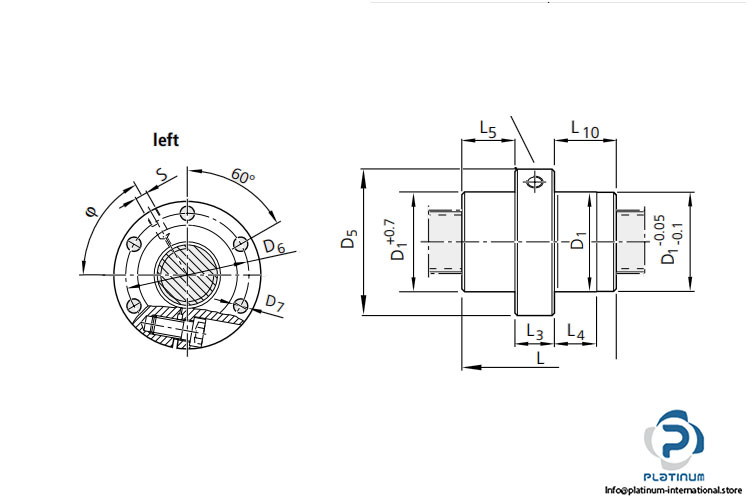

Dimensions:
D₁: 48 mm
D₅: 73 mm
L: 48 mm
L₃: 20 mm
Screw Path length: 1360 mm
Screw Total length: 1480 mm
