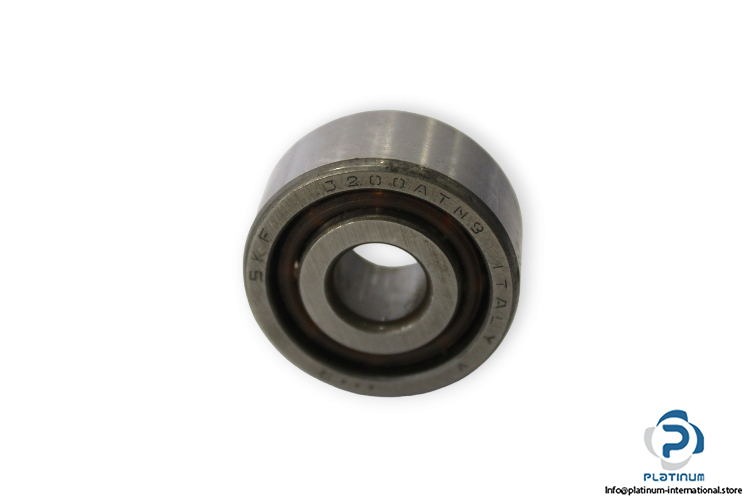

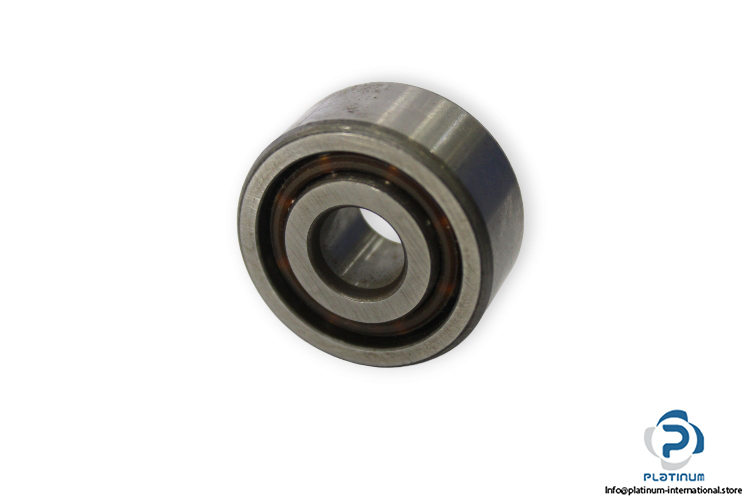

SKF 3200 ATN9 Double ROW Angular Contact Ball Bearing

Manufacturer: SKF
Type: Double Row Angular Contact Ball Bearing
Model: 3200-ATN9

Dimensions
Bore Diameter d: 10 mm
Outer diameter D: 30 mm
Width B: 14 mm
Contact angle: 30 °
Basic load ratings, radial:
Dynamic C_r: 7610 N
Static C_0r: 4300 N
Fatigue load limit: 183 N
Limiting Speed: 24000 rpm
Reference speed: 26000 rpm
Cage: TN9, Glass fibre reinforced PA66 cage
