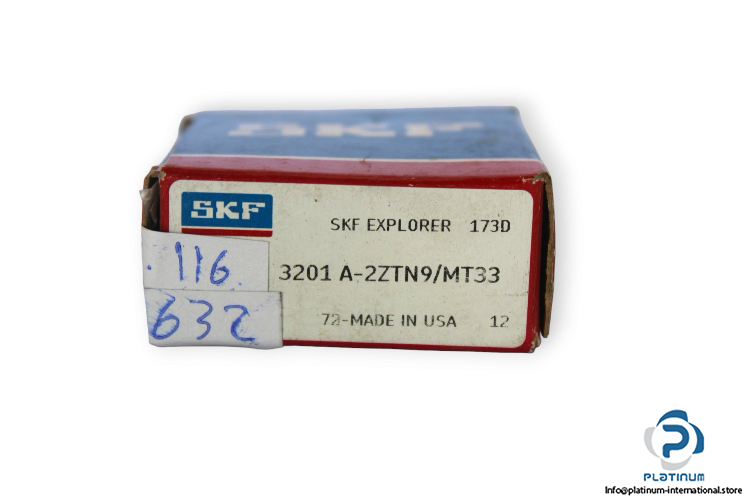

SKF 3201 A-2ZTN9/MT33 Double ROW Angular Contact Ball Bearing
Manufacturer: SKF
Type: Double Row Angular Contact Ball Bearing
Model: 3201A-2ZTN9/MT33

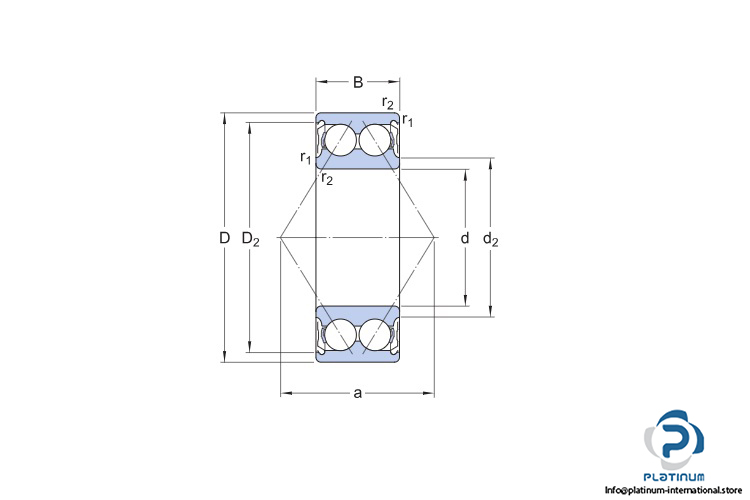

Dimensions
Bore Diameter d: 12 mm
Outer diameter D: 32 mm
Width B: 15.9 mm
Contact angle: 30 °
Basic load ratings, radial:
Dynamic Cr: 10100 N
Static C0r: 5600 N
Fatigue load limit: 240 N
Limiting Speed: 22000 rpm
Reference speed: 24000 rpm
Seal: Non-Contact Shield on Both Sides
Cage: TN9, Glass fibre reinforced PA66 cage
