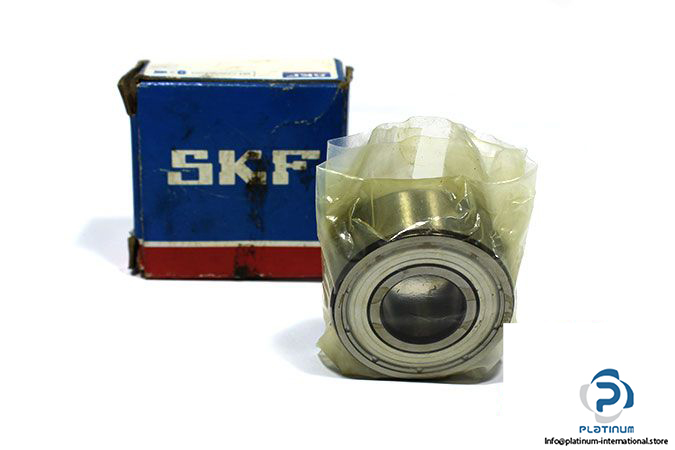

SKF 3202 A-2ZTN9/MT33 Double ROW Angular Contact Ball Bearing
Manufacturer: SKF
Type: Double Row Angular Contact Ball Bearing
Model: 3202A 2ZTN9 MT33

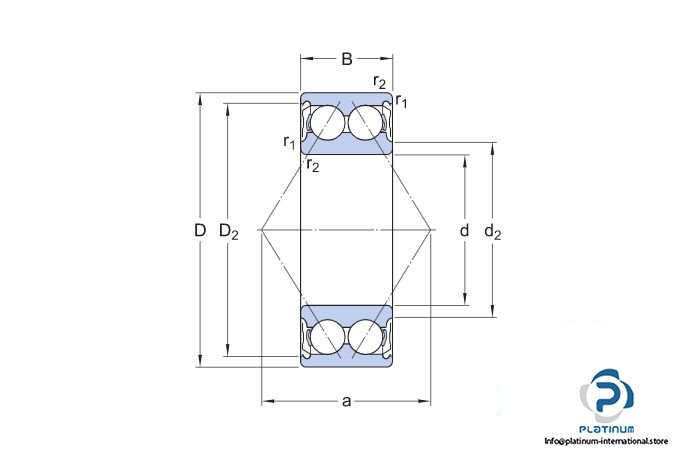

Dimensions
Bore Diameter d: 15 mm
Outer diameter D: 35 mm
Width B: 15.9 mm
Contact angle: 30 °
Basic load ratings:
Dynamic C: 11.2 kN
Static C0: 6.8 kN
Fatigue load limit Pu: 0.285 kN
Reference speed: 22000 rpm
Limiting speed: 18000 rpm
Seal: 2Z, Shield on both sides
Cage: TN9, Glass fibre reinforced PA66 cage
