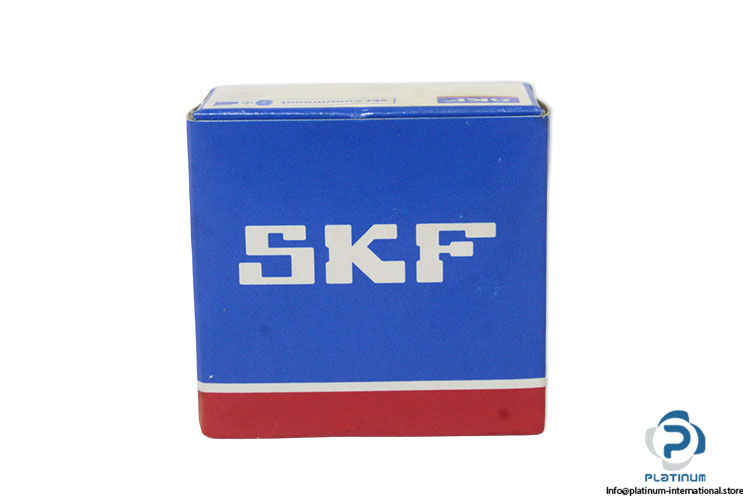

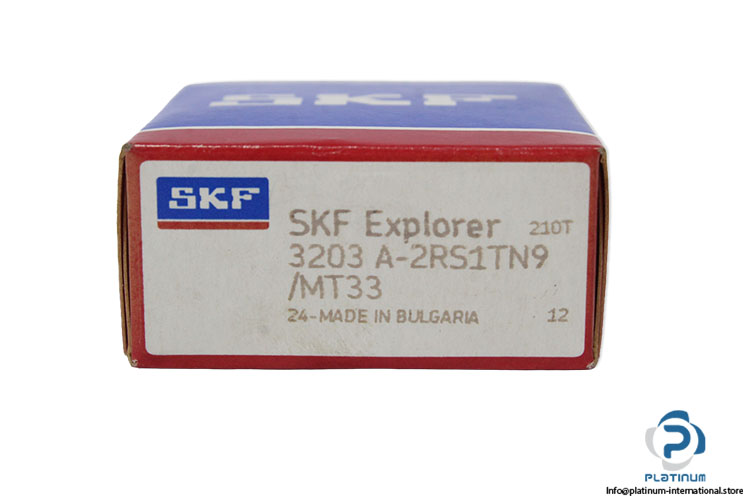

SKF 3203 A-2RS1TN9/MT33 Angular Contact Ball Bearing
New
In stock1 unitReady to ship
Angular Contact Ball Bearing SKF angular contact ball bearing engineered for handling combined radial and axial loads with reliable performance, high rotational accuracy, and long operating life in industrial applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Bore diameter d | 17 mm |
| Outer diameter D | 40 mm |
| Width B | 17.5 mm |
| Dynamic load rating | 14.3 kN |
| Static load rating | 8.8 kN |
| Limiting speed | 12 000 r/min |
| Calculation factor , kr | 0.06 |
| Limiting value, e | 0.8 |
| Calculation factor, X | 0.63 |
| Calculation factor, Y0 | 0.66 |
| Calculation factor, Y1 | 0.78 |
| Calculation factor, Y2 | 1.2 |
| Stock key | JO-004 |
| Condition | New |
| SKU | 1099879 |
| Weight | 0,10 |
