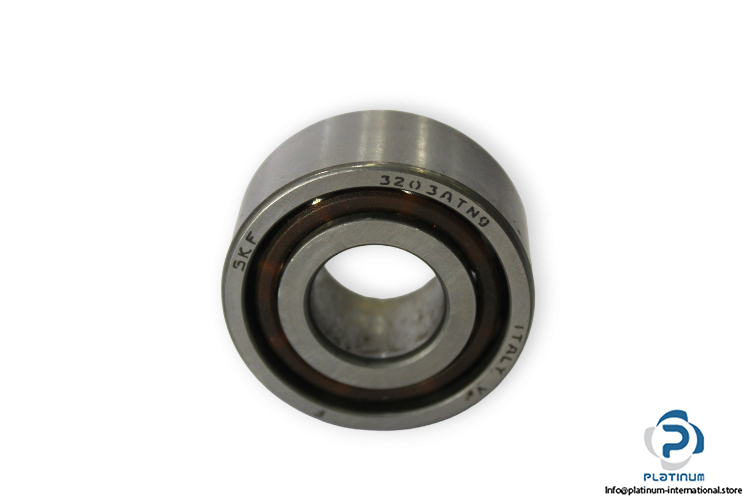

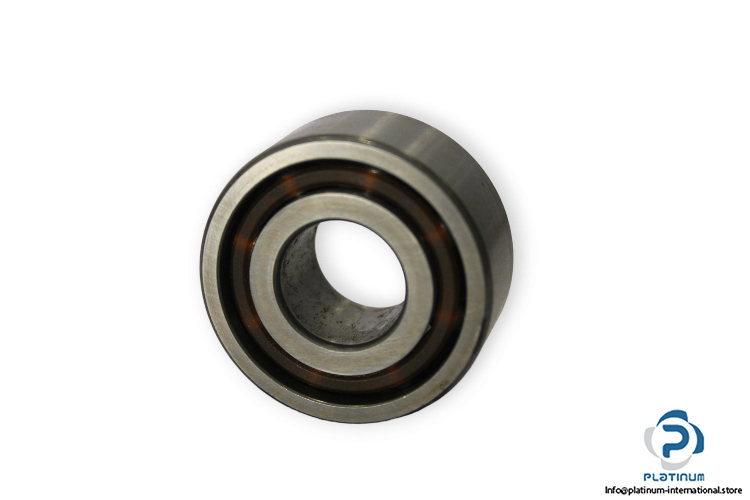

SKF 3203 ATN9 Double ROW Angular Contact Ball Bearing

Manufacturer: SKF

Type: Double Row Angular Contact Ball Bearing

Model: 3203ATN9

Dimensions

Bore Diameter d: 17 mm

Outer diameter D: 40 mm

Width B: 17.5 mm

Contact angle: 30 °

Basic load ratings, radial:

Dynamic C_r: 14300 N

Static C_0r: 8800 N

Fatigue load limit: 365 N

Limiting Speed: 16000 rpm

Reference speed: 19000 rpm

Cage: Glass fibre reinforced PA66 cage, rolling element centred
