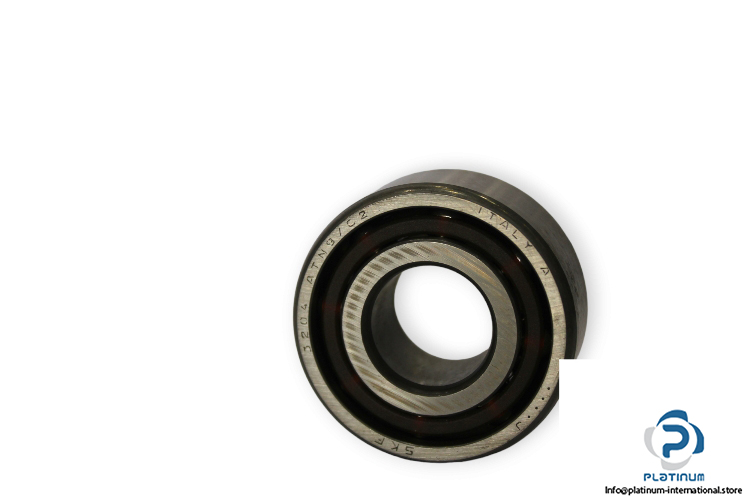

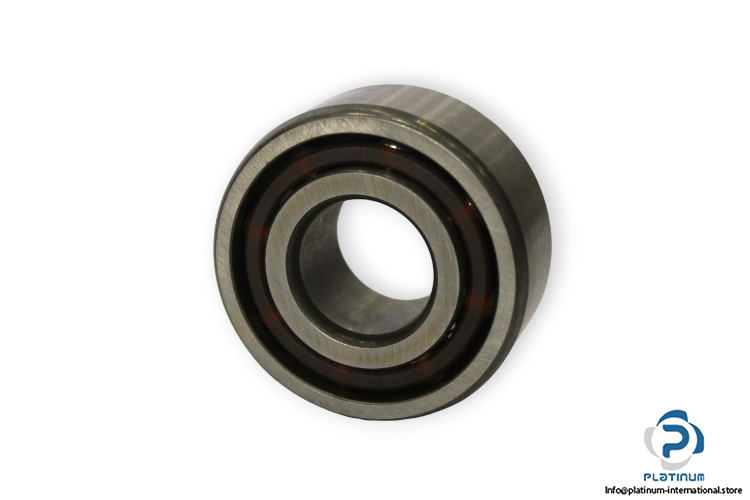

SKF 3204 ATN9/C2 Double ROW Angular Contact Ball Bearing
Manufacturer: SKF
Type: Double Row Angular Contact Ball Bearing
Model: 3204ATN9/C2
Dimensions
Bore Diameter d: 20 mm
Outer diameter D: 47 mm
Width B: 20.6 mm
Contact angle: 30 °
Basic load ratings, radial:
Dynamic Cr: 20400 N
Static C0r: 12900 N
Fatigue load limit: 550 N
Limiting Speed: 14000 rpm
Reference speed: 16000 rpm
Cage: Glass fibre reinforced PA66 cage, rolling element centred
Ring type: One-piece inner and outer rings
Axial internal clearance: C2
