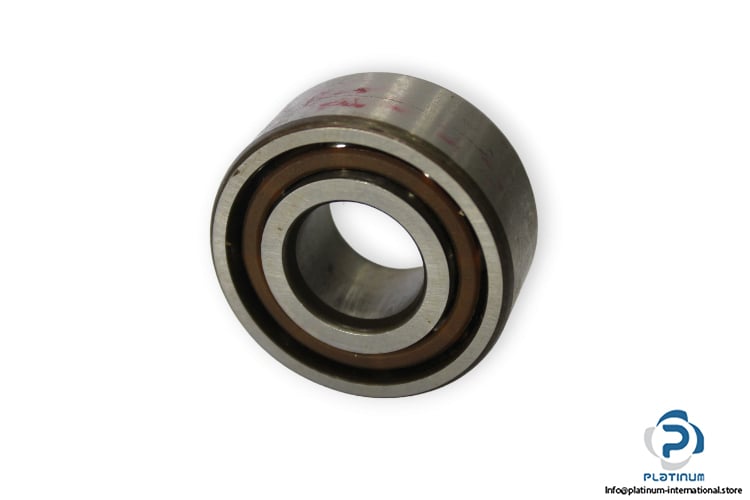

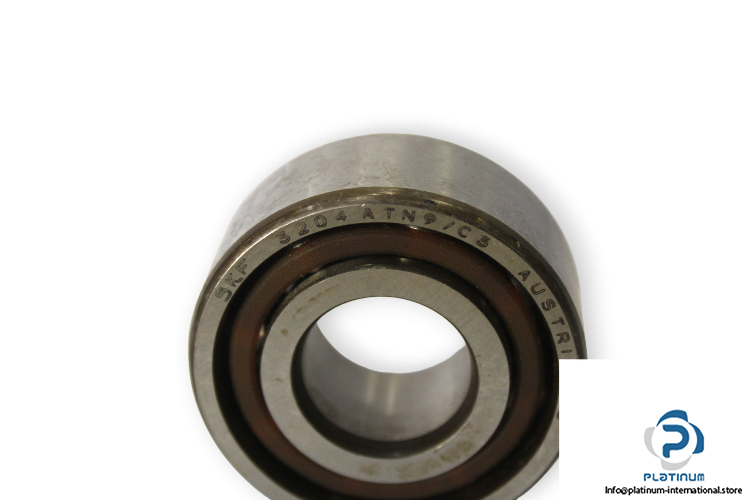

SKF 3204 ATN9/C3 Double ROW Angular Contact Ball Bearing

Manufacturer: SKF

Type: Double Row Angular Contact Ball Bearing

Model: 3204ATN9/C3

Dimensions

Bore Diameter d: 20 mm

Outer diameter D: 47 mm

Width B: 20.6 mm

Contact angle: 30 °

Basic load ratings, radial:

Dynamic C_r: 20400 N

Static C_0r: 12900 N

Fatigue load limit: 550 N

Limiting Speed: 14000 rpm

Reference speed: 16000 rpm

Cage: Glass fibre reinforced PA66 cage, rolling element centred

Ring type: One-piece inner and outer rings

Axial internal clearance: C3
