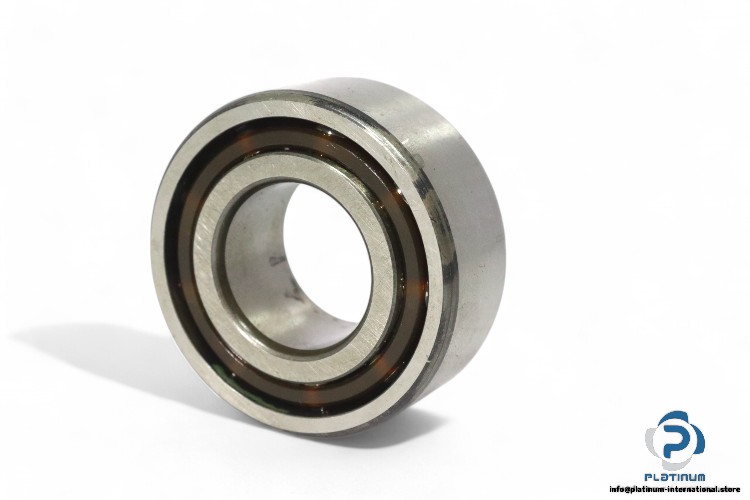

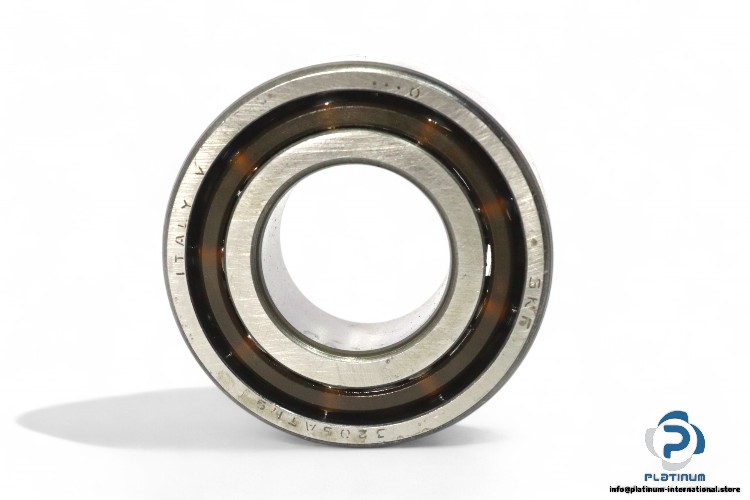

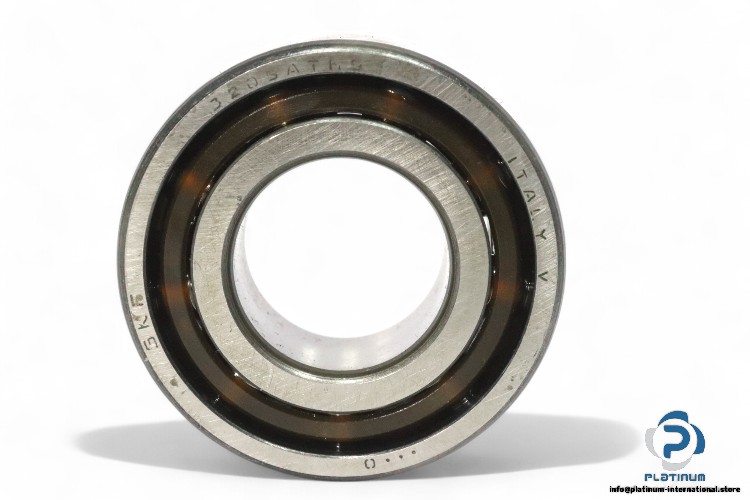

SKF 3205 ATN9 Double ROW Angular Contact Ball Bearing
Manufacturer: SKF
Type: Double Row Angular Contact Ball Bearing
Model: 3205ATN9
Dimensions
Bore Diameter d: 25 mm
Outer diameter D: 52 mm
Width B: 20.6 mm
Contact angle: 30 °
Basic load ratings:
Dynamic C: 22 kN
Static C0: 15.3 kN
Fatigue load limit Pu: 0.64 kN
Reference speed: 12000 rpm
Limiting speed: 12000 rpm
Cage: TN9, Glass fibre reinforced PA66 cage
