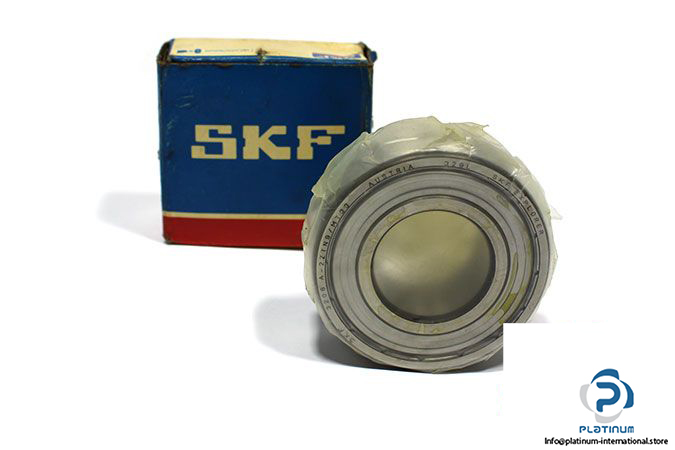

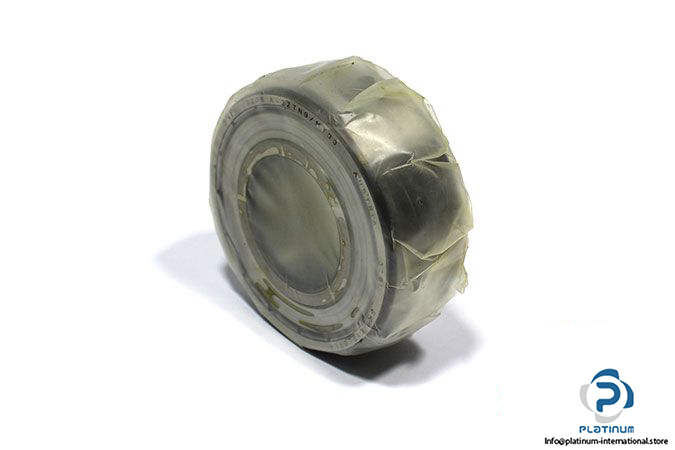

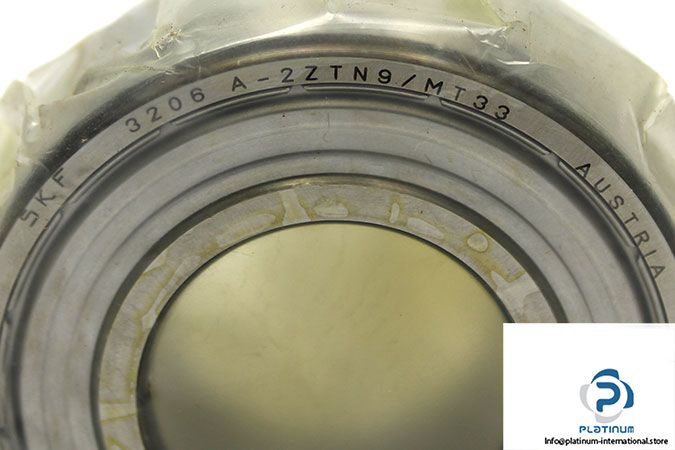

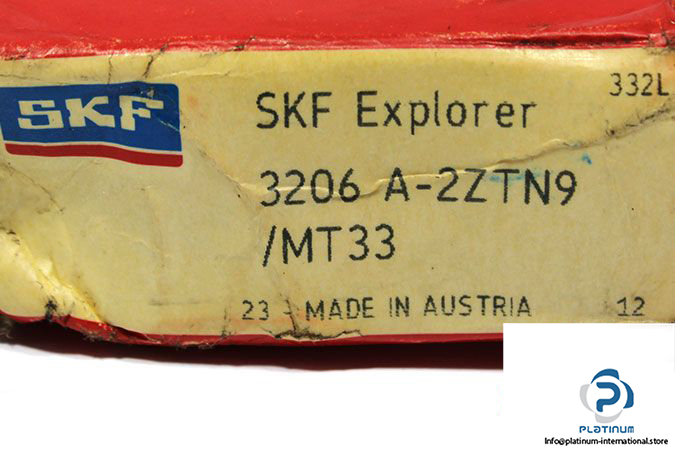

SKF 3206 A-2ZTN9/MT33 Double ROW Angular Contact Ball Bearing
Manufacturer: SKF
Type: Double Row Angular Contact Ball Bearing
Model: 3206A 2ZTN9 MT33

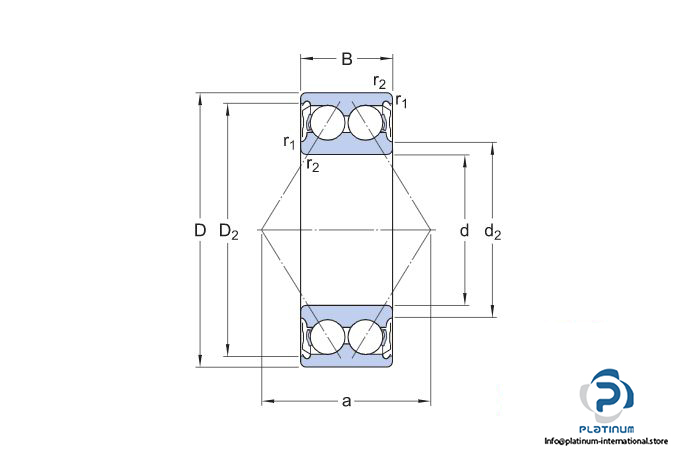

Dimensions
Bore Diameter d: 30 mm
Outer diameter D: 62 mm
Width B: 23.8 mm
Contact angle: 30 °
Basic load ratings:
Dynamic C: 30.5 kN
Static C0: 22 kN
Fatigue load limit Pu: 0.93 kN
Reference speed: 10000 rpm
Limiting speed: 10000 rpm
Seal: 2Z, Shield on both sides
Cage: TN9, Glass fibre reinforced PA66 cage
