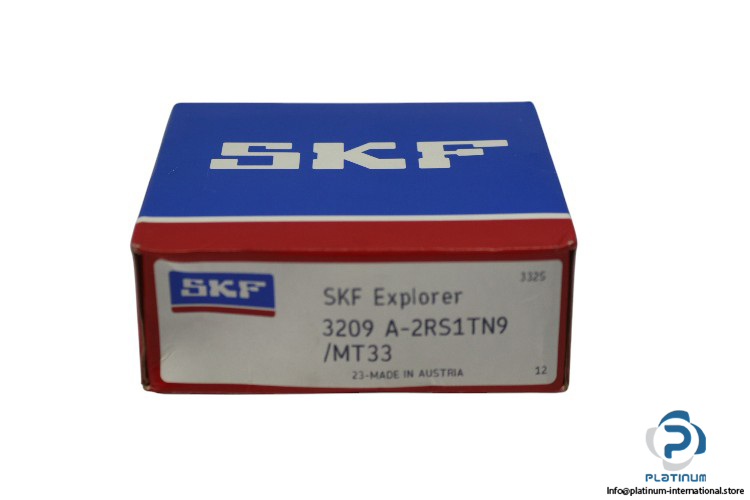

SKF 3209A-2RS1TN9/MT33 Double ROW Angular Contact Ball Bearing
New
In stock2 unitsReady to ship
Double Row Angular Contact Ball Bearing
The SKF 3209A-2RS1TN9/MT33 Bearing features a 45mm bore, 30° contact angle, 2RS1 seals, and a PA66 cage, ensuring durability and high load capacity.2RS13209A-2RS1TN9/MT3345mmAngularBallbearingboreCageCapacityContactDoublehigh-loadHigh-SpeedIndustrialPA66RowSealSKF
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
SKF 3209A-2RS1TN9/MT33 Double Row Angular Contact Ball Bearing
The SKF 3209A-2RS1TN9/MT33 Double Row Angular Contact Ball Bearing is designed for high radial and axial load capacities, providing smooth operation with a 30° contact angle. Featuring a reinforced PA66 cage, contact seals on both sides, and optimized grease lubrication, this bearing ensures durability and long-lasting performance in demanding applications.
Manufacturer: SKF
Type: Double Row Angular Contact Ball Bearing
Model: 3209A-2RS1TN9/MT33
Basic Load Ratings, Radial:
| Bore Diameter (d) | 45 mm |
| Outer Diameter (D) | 85 mm |
| Width (B) | 30.2 mm |
| Contact Angle | 30° |
| Dynamic (Cr) | 52000 N |
| Static (C0r) | 41500 N |
| Fatigue Load Limit | 1760 N |
| Limiting Speed | 5300 rpm |
| Seal Type | 2RS1, Contact Seal on Both Sides |
| Cage Type | TN9, Glass Fibre Reinforced PA66 Cage |
| Grease Suffix | MT33 |
