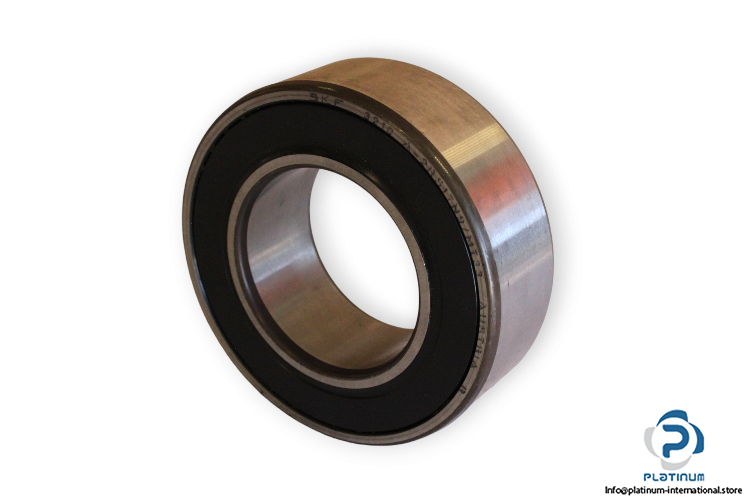

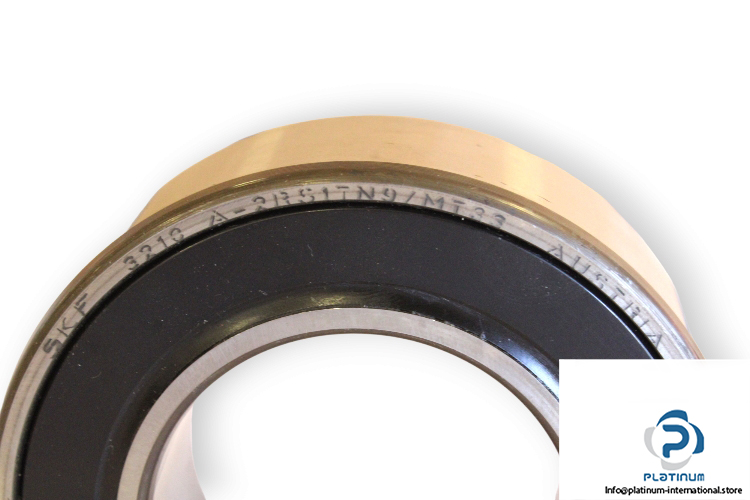

SKF 3210 A-2RS1TN9/MT33 Double ROW Angular Contact Ball Bearing
Manufacturer: SKF
Type: Double Row Angular Contact Ball Bearing
Model: 3210A-2RS1TN9/MT33
Dimensions
Bore Diameter d: 50 mm
Outer diameter D: 90 mm
Width B: 30.2 mm
Contact angle: 30 °
Basic load ratings, radial:
Dynamic Cr: 51000 N
Static C0r: 42500 N
Fatigue load limit: 1800 N
Limiting Speed: 4800 rpm
Seal: Contact Seal on both sides
Cage: TN9, Glass fibre reinforced PA66 cage
