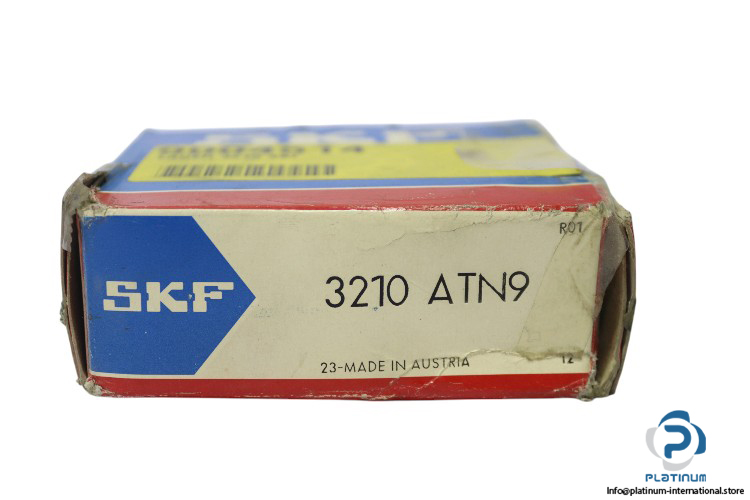

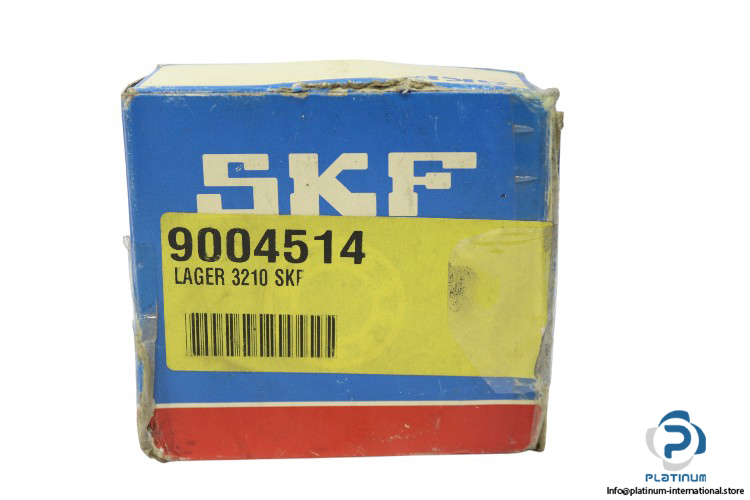

SKF 3210 ATN9 Double ROW Angular Contact Ball Bearing
New
In stock1 unitReady to ship
DOUBLE ROW ANGULAR CONTACT BEARING
High-performance SKF double row angular contact bearing with 50 mm bore and 30° contact angle, designed for combined loads and high-speed reliability in demanding mechanical systems.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
SKF 3210 ATN9 DOUBLE ROW ANGULAR CONTACT BALL BEARING
The SKF 3210 ATN9 is a robust double row angular contact ball bearing, designed to handle combined radial and axial loads with precision. Featuring a 30° contact angle and nylon-reinforced TN9 cage, it is suitable for high-speed industrial applications where reliability and load capacity are critical.
Manufacturer: SKF
Type: Double Row Angular Contact Ball Bearing
Model: 3210 ATN9
| Bore Diameter (d) | 50 mm |
| Outer Diameter (D) | 90 mm |
| Width (B) | 30.2 mm |
| Contact Angle | 30° |
| Dynamic Load Rating (Cr) | 51000 N |
| Static Load Rating (C0r) | 42500 N |
| Reference Speed | 8000 rpm |
| Limiting Speed | 7000 rpm |
| Cage | Sheet Metal, TN9 (Nylon, Glass Fiber Filled) |
