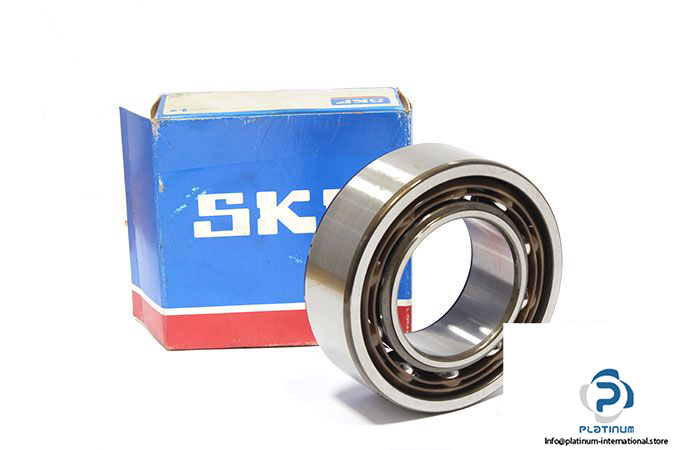

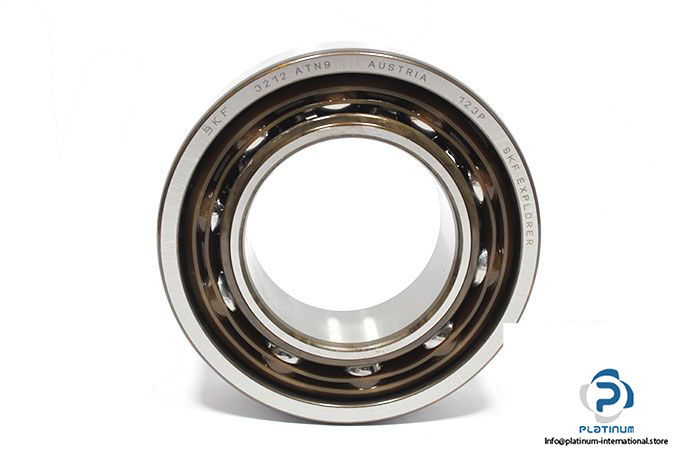

SKF 3212 ATN9 Double ROW Angular Contact Ball ‎Bearing ‎

Manufacturer: SKF

Type: Double row angular contact ball bearing

Part No: 3212 A TN9

Bore Diameter d: 60 mm

Outer diameter D: 110 mm

Width B: 36.5 mm

Chamfer r_min: 1.5 mm

Basic load ratings:

Dynamic C_r: 75 kN

Static C_0r: 64 kN

Fatigue limit load C_ur: 2.75 kN

Limiting Speed: 5600 rpm

Reference speed: 5600 rpm

Cage design: TN9; Glass fiber reinforced PA66 cage, ball centred

Internal design:   No filling slots

Weight: 1.2 kg
