SKF 3303 ATN9 Angular Contact Ball Bearing

In stock1 unitReady to ship

Angular Contact Ball Bearing

High-performance SKF angular contact ball bearing with 30° contact angle and reinforced TN9 cage, designed for combined loads and high-speed industrial applications.

SKU
1090868
Category
Others
Condition
Used
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

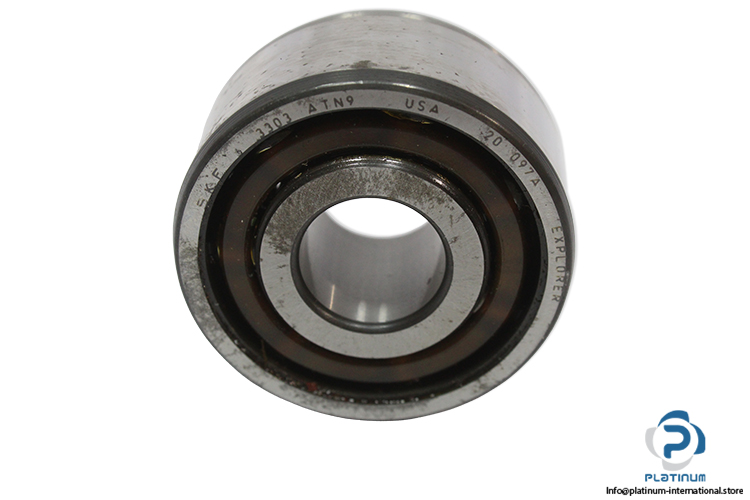

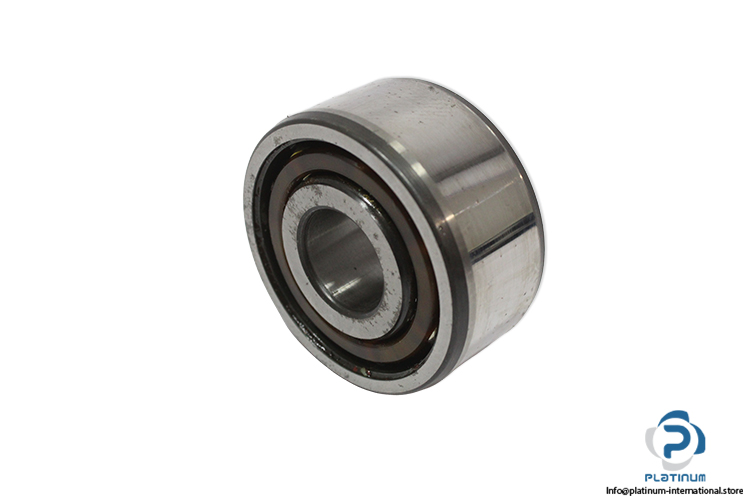

SKF 3303ATN9 Angular Contact Ball Bearing

The SKF 3303ATN9 Angular Contact Ball Bearing is a high-performance bearing designed to support combined radial and axial loads with excellent reliability and efficiency. Engineered with a 30° contact angle and a glass fibre reinforced TN9 cage, this bearing ensures smooth operation, reduced friction, and extended service life in demanding industrial applications.

Manufacturer: SKF

Type: Angular Contact Ball Bearing

Model: 3303ATN9

Bore Diameter17 mm
Outer Diameter47 mm
Width22.2 mm
Contact Angle30°
Basic Dynamic Load Rating21.6 kN
Basic Static Load Rating12.7 kN
Fatigue Load Limit0.815 kN
Reference Speed17,000 r/min
Limiting Speed14,000 r/min
CageTN9, Glass Fibre Reinforced PA66
Matched ArrangementNo
Universal Matching BearingNo
RecommendationA reliable choice for high-speed and precision applications, ensuring long service life and reduced maintenance costs.
