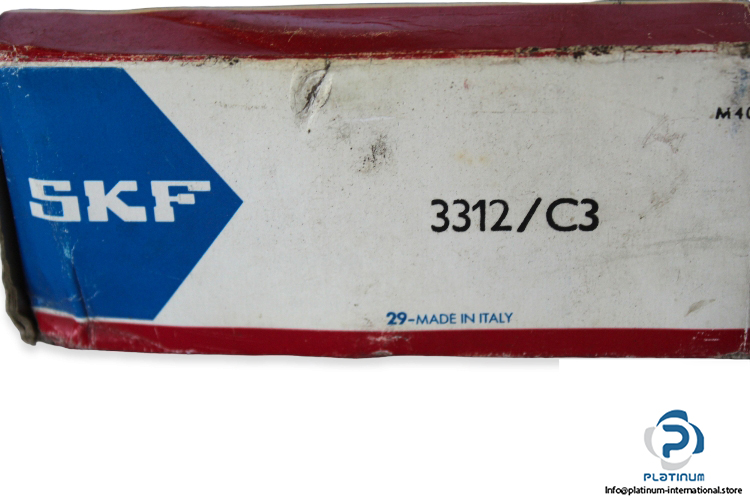

SKF 3312/C3 Double ROW Angular Contact Ball Bearing
Manufacturer: SKF
Type: Double Row Angular Contact Ball Bearing
Model: 3312/C3
Replaces: 3312 A/C3
Dimensions
Bore Diameter d: 60 mm
Outer diameter D: 130 mm
Width B: 54 mm
Contact angle: 30 °
Basic load ratings, radial:
Dynamic Cr: 127000 N
Static C0r: 95000 N
Limiting Speed: 5000 rpm
Reference speed: 5600 rpm
Cage: Sheet metal
Axial internal clearance: C3
