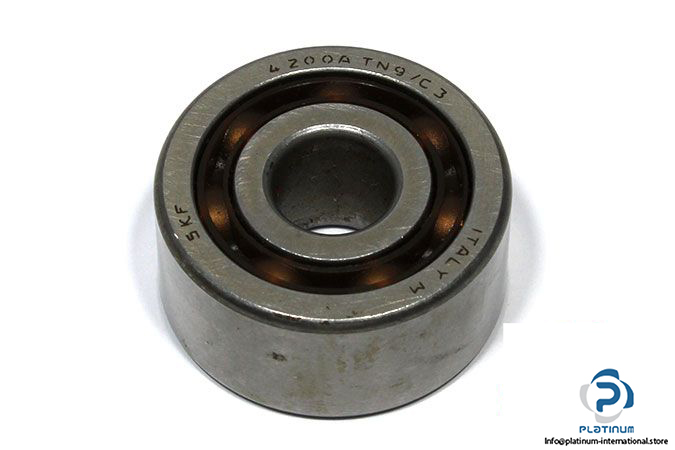

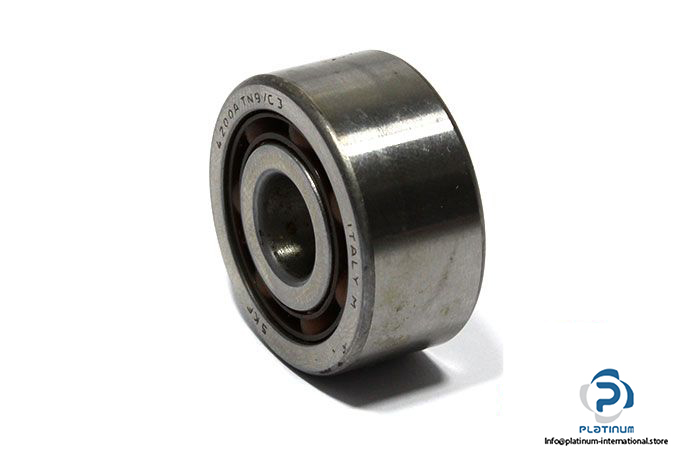

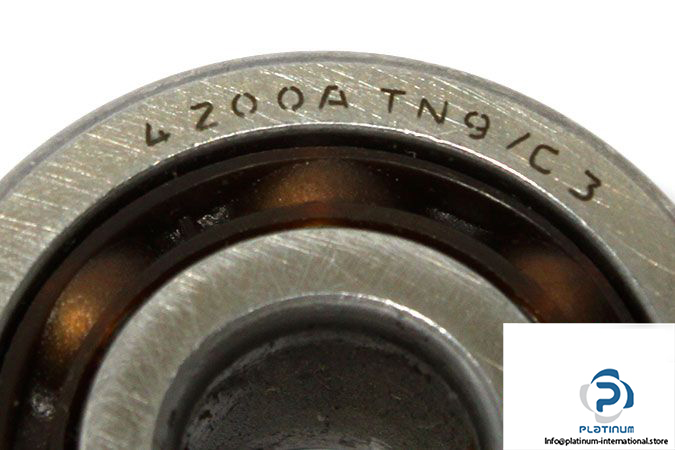

SKF 4200A TN9/C3 Double ROW Deep Groove Ball Bearing

Manufacturer: SKF

Type: Double Row Deep Groove Ball Bearing

Model: 4200 ATN9 C3

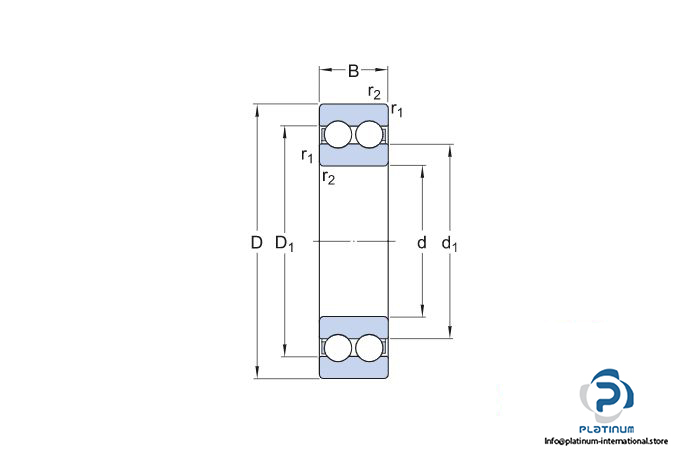

Dimensions

Bore Diameter d: 10 mm

Outer diameter D: 30 mm

Width B: 14 mm

Chamfer dimension r_{1,2 min}: 0.6 mm

Basic load ratings:

Dynamic C: 9.23 kN

Static C₀: 5.2 kN

Fatigue load limit P_u: 0.224 kN

Reference speed: 40000 rpm

Limiting speed: 22000 rpm

Cage: TN9, Glass fibre reinforced PA66 cage

Weight: 0.05 kg
