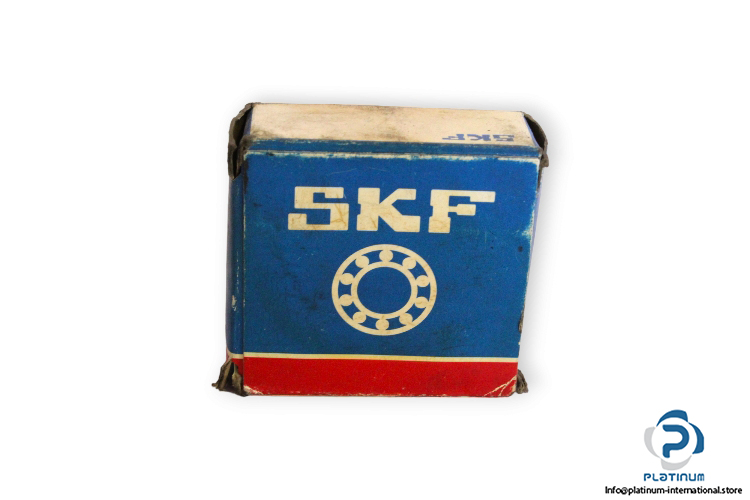

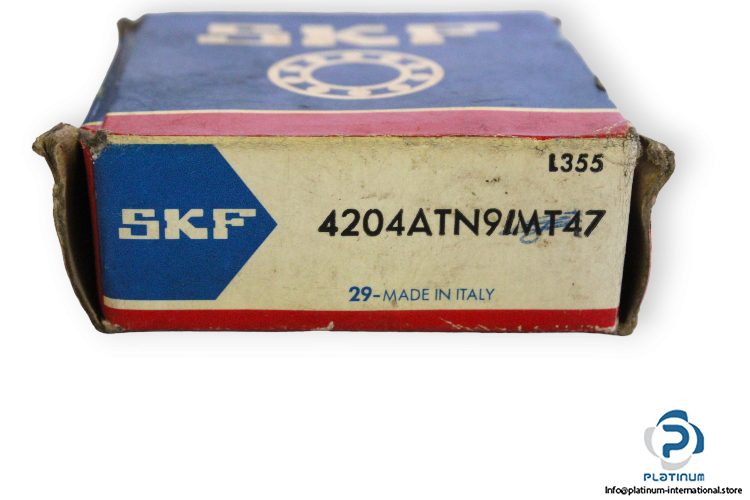

SKF 4204 ATN9/MT47 Double ROW Deep Groove Ball Bearing

Manufacturer: SKF
Type: Double Row Deep Groove Ball Bearing
Model: 4204 ATN9/MT47

Dimensions
Bore Diameter d: 20 mm
Outer diameter D: 47 mm
Width B: 18 mm
Chamfer dimension r_{1,2 min}: 1 mm
Basic load ratings:
Dynamic C: 17.8 kN
Static C₀: 12.5 kN
Fatigue load limit P_u:0.53 Kn
Reference speed: 24000 rpm
Limiting speed: 13000 rpm
Cage: Glass fibre reinforced PA66 cage, rolling element centred
