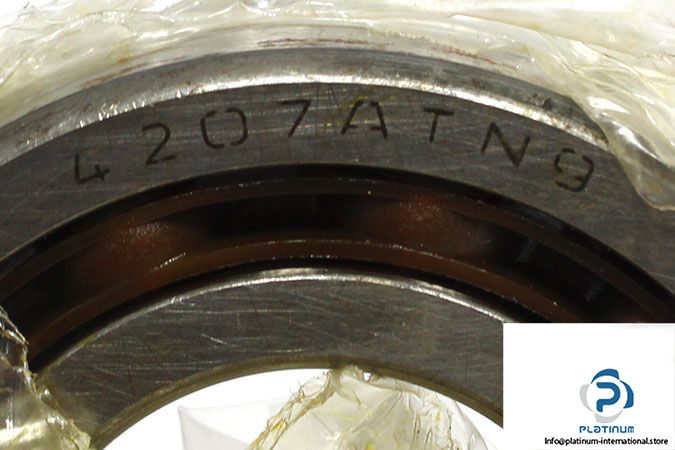

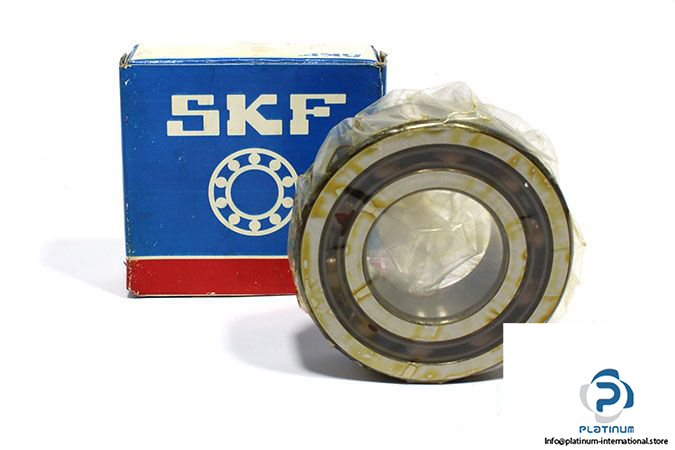

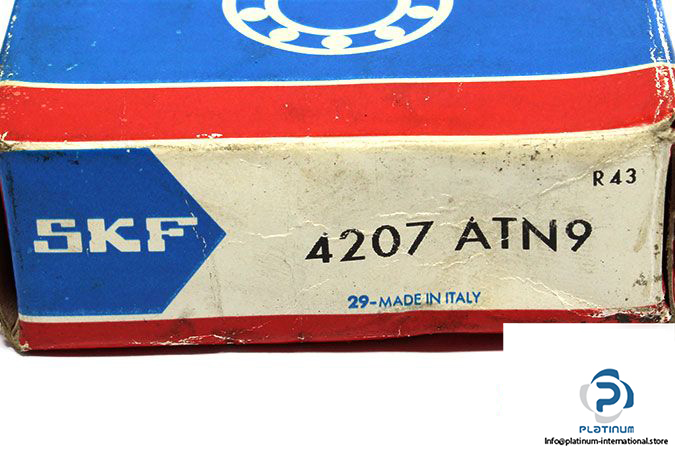

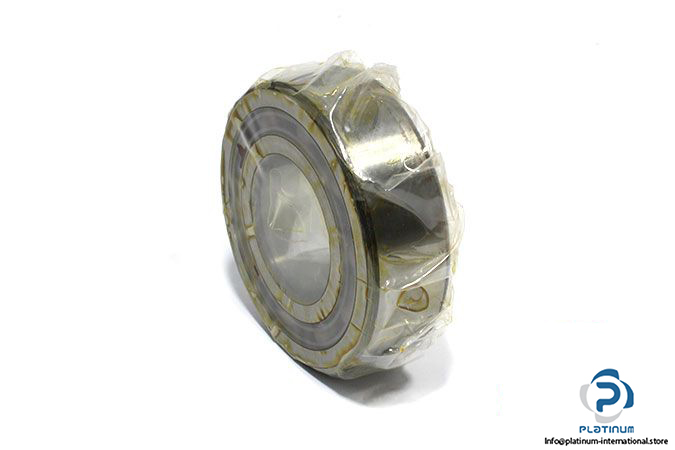

SKF 4207 ATN9 Double ROW Deep Groove Ball Bearing

Manufacturer: SKF

Type: Double Row Deep Groove Ball Bearing

Model: 4207ATN9

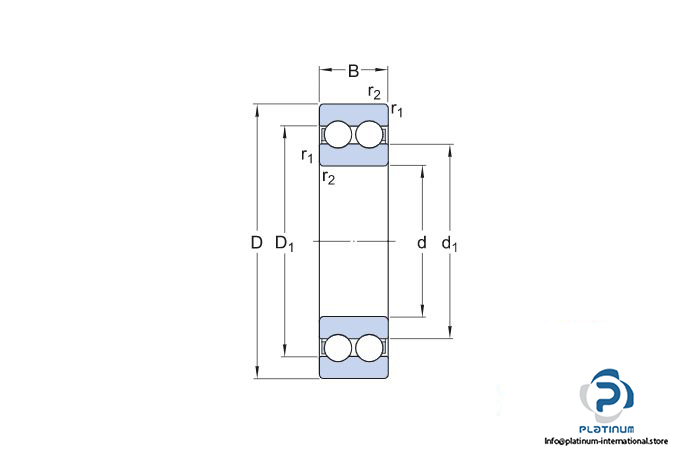

Dimensions

Bore Diameter d: 35 mm

Outer diameter D: 72 mm

Width B: 23 mm

Chamfer dimension r_{1,2 min}: 1.1 mm

Basic load ratings:

Dynamic C: 35.1 kN

Static C₀: 28.5 kN

Fatigue load limit P_u: 1.2 kN

Reference speed: 15000 rpm

Limiting speed: 8000 rpm

Cage: TN9, Glass fibre reinforced PA66 cage

Weight: 0.41 kg
