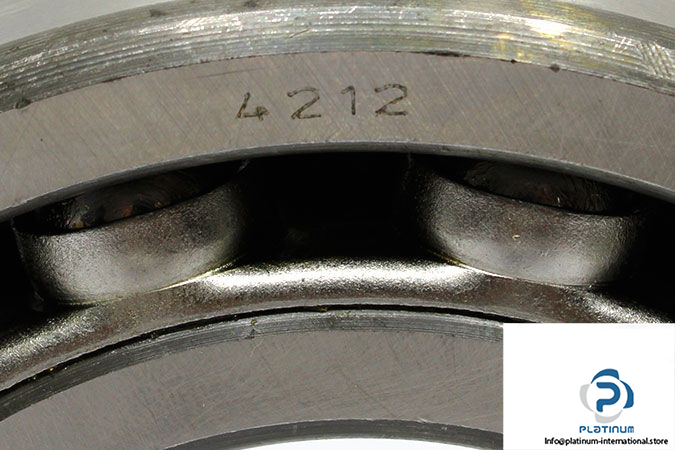

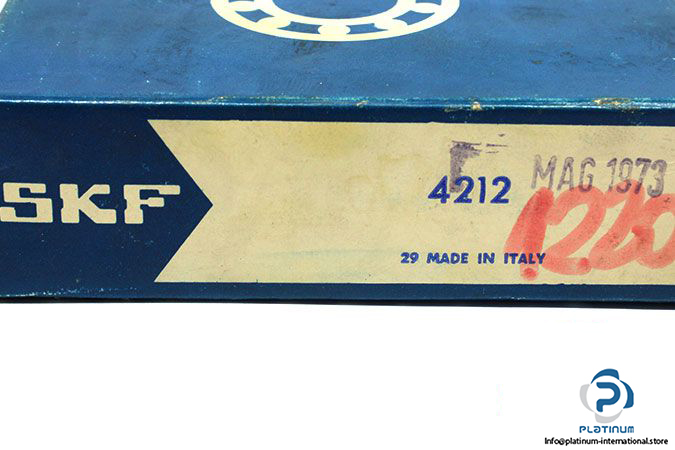

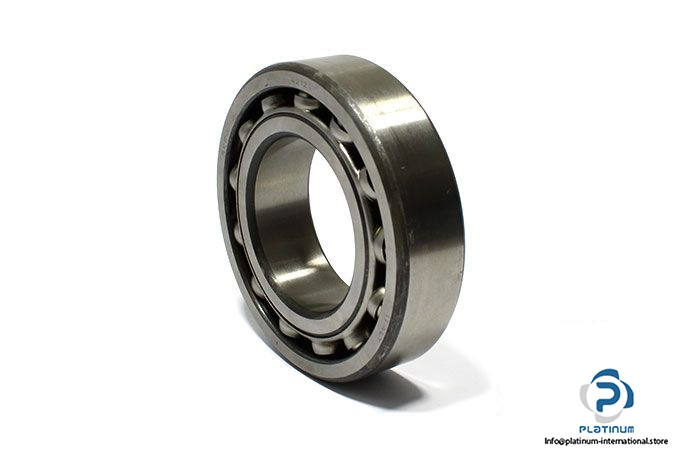

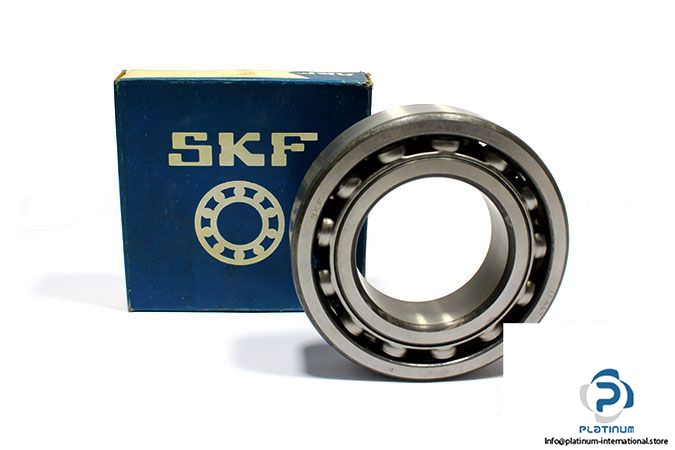

SKF 4212 Double ROW Deep Groove Ball Bearing

Manufacturer: SKF

Type: Double Row Deep Groove Ball Bearing

Model: 4212

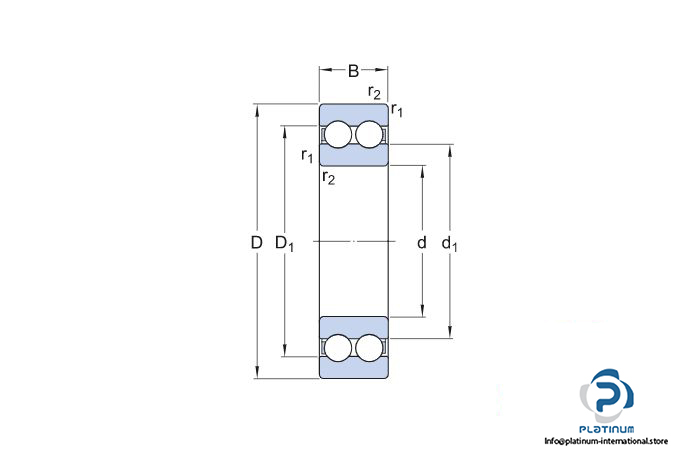

Dimensions

Bore Diameter d: 60 mm

Outer diameter D: 110 mm

Width B: 28 mm

Chamfer dimension r_{1,2 min}: 1.5 mm

Basic load ratings:

Dynamic C: 57.2 kN

Static C₀: 55 kN

Fatigue load limit P_u: 2.36 kN

Cage: Steel cage

Weight: 1.1 kg
