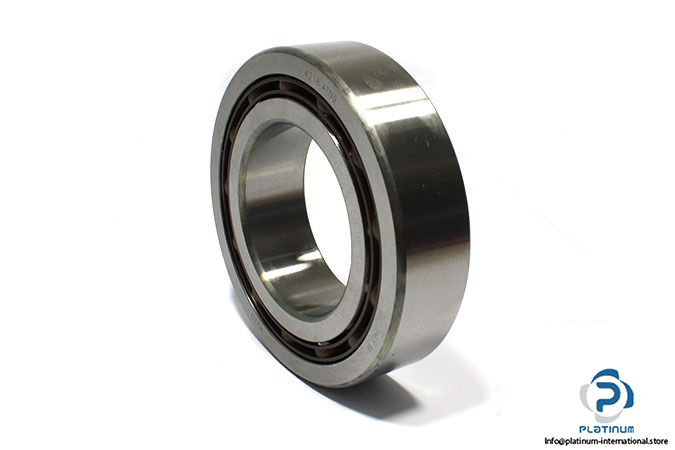

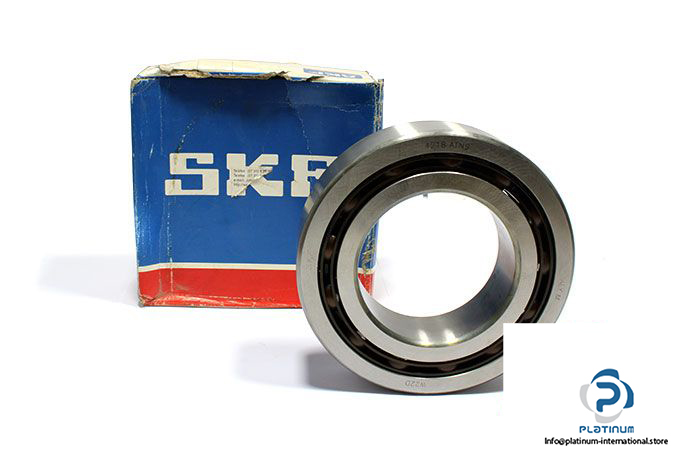

SKF 4218 ATN9 Double ROW Deep Groove Ball Bearing

Manufacturer: SKF

Type: Double Row Deep Groove Ball Bearing

Model: 4218ATN9

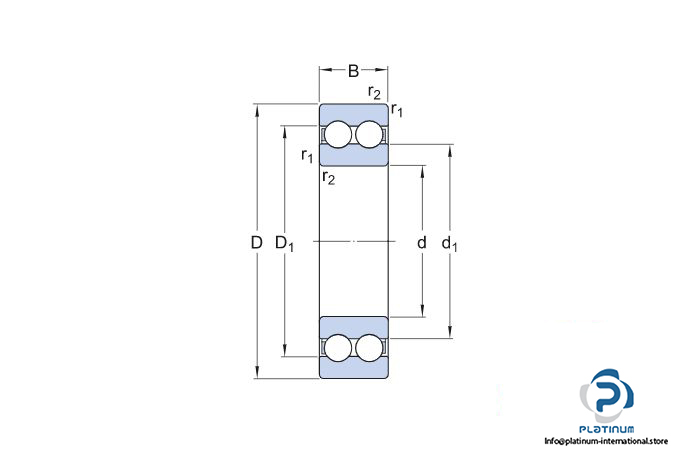

Dimensions

Bore Diameter d: 90 mm

Outer diameter D: 160 mm

Width B: 40 mm

Chamfer dimension r_{1,2 min}: 2 mm

Basic load ratings:

Dynamic C: 112 kN

Static C₀: 122 kN

Fatigue load limit P_u: 4.65 kN

Reference speed: 6300 rpm

Limiting speed: 3400 rpm

Cage: TN9, Glass fibre reinforced PA66 cage

Weight: 3.25 kg
