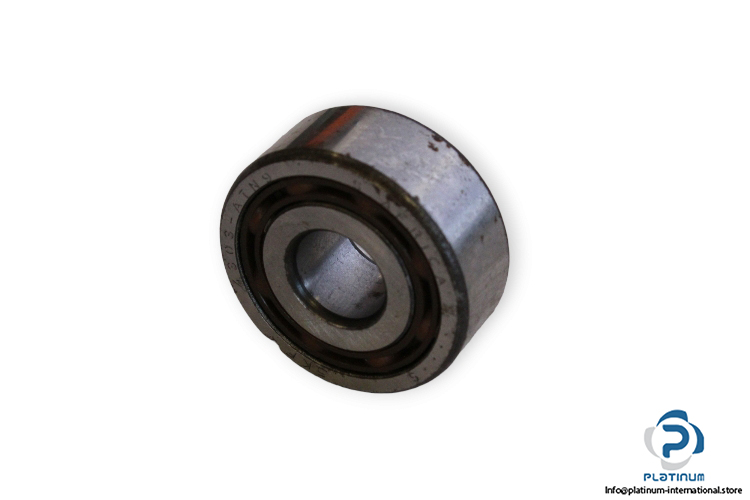

SKF 4303 ATN9 Double ROW Deep Groove Ball Bearing
Manufacturer: SKF
Type: Double Row Deep Groove Ball Bearing
Model: 4303ATN9
Dimensions
Bore Diameter d: 17 mm
Outer diameter D: 47 mm
Width B: 19 mm
Chamfer dimension r1,2 min: 1 mm
Basic load ratings:
Dynamic C: 19.5 kN
Static C0: 13.2 kN
Fatigue load limit Pu: 0.56 KN
Reference speed: 24000 rpm
Limiting speed: 13000 rpm
Cage: Glass fibre reinforced PA66 cage, rolling element centred
