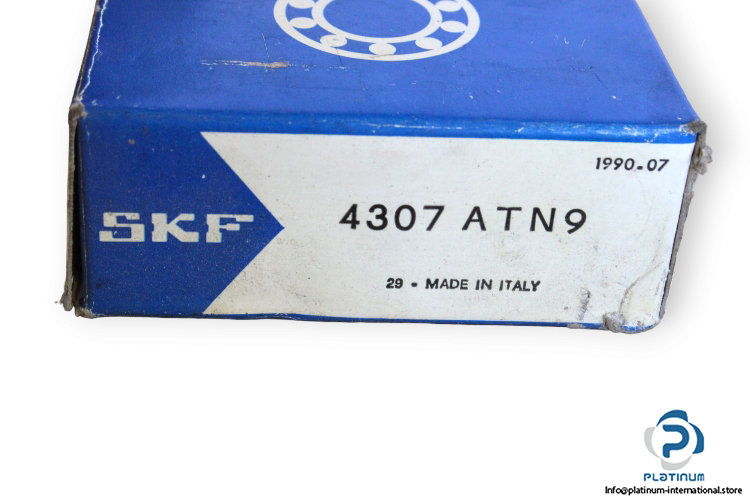

SKF 4307 ATN9 Double ROW Deep Groove Ball Bearing

Manufacturer: SKF
Type: Double Row Deep Groove Ball Bearing
Model: 4307ATN9

Dimensions
Bore Diameter d: 35 mm
Outer diameter D: 80 mm
Width B: 31 mm
Chamfer dimension r_{1,2 min}: 1.1 mm
Basic load ratings:
Dynamic C: 50.7 kN
Static C₀: 38 kN
Fatigue load limit P_u: 1.63 kN
Reference speed: 14000 rpm
Limiting speed: 7500 rpm
Cage: Glass fibre reinforced PA66 cage, rolling element centred
