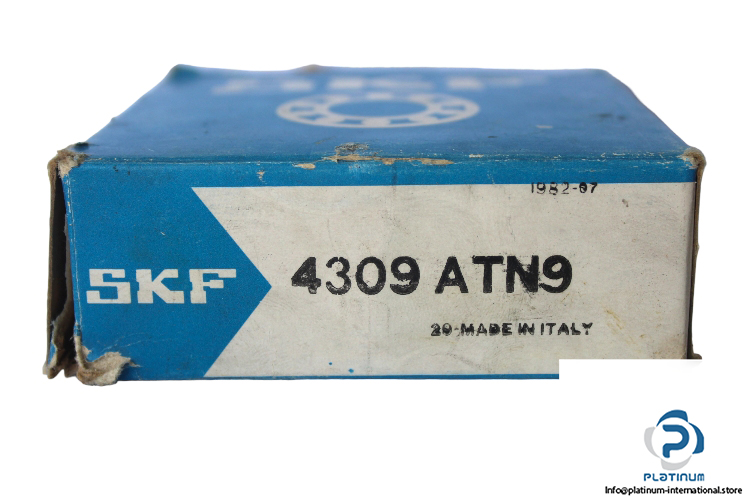

SKF 4309 ATN9 Double ROW Deep Groove Ball Bearing

Manufacturer: SKF

Type: Double row deep groove ball bearing

Model: 4309ATN9

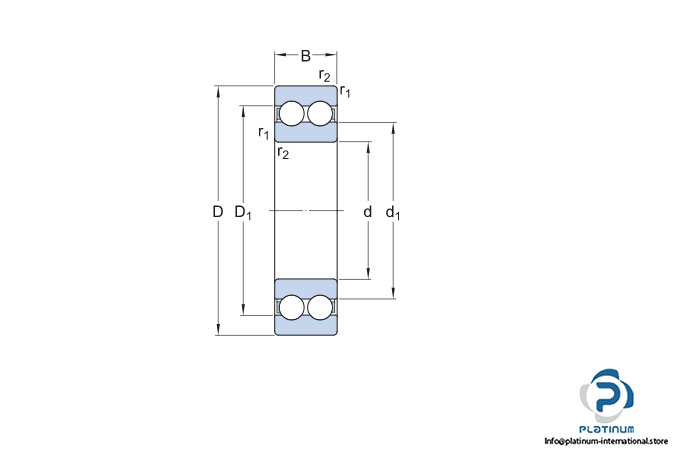

Dimensions

Bore Diameter d: 45 mm

Outer diameter D: 100 mm

Width B: 36 mm

Dynamic C_r: 68900 N

Static C_0r: 56000 N

Fatigue load limit: 2400 N

Limiting speed: 11000 rpm

Reference speed: 6000 rpm

Cage design: TN9, Glass fiber reinforced PA66 cage
