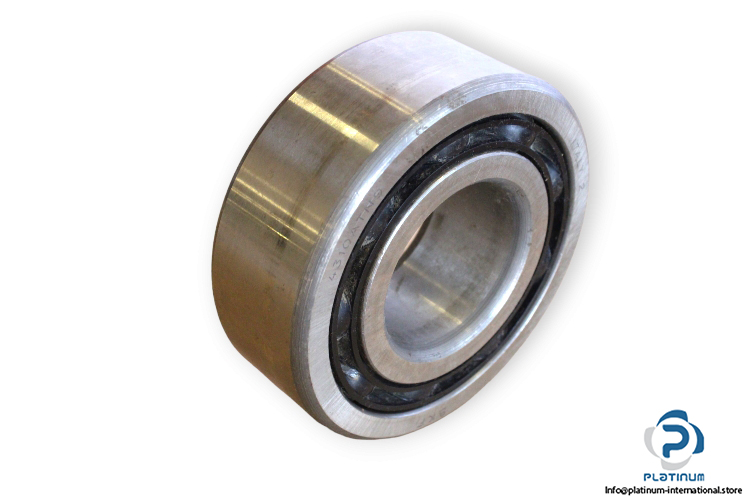

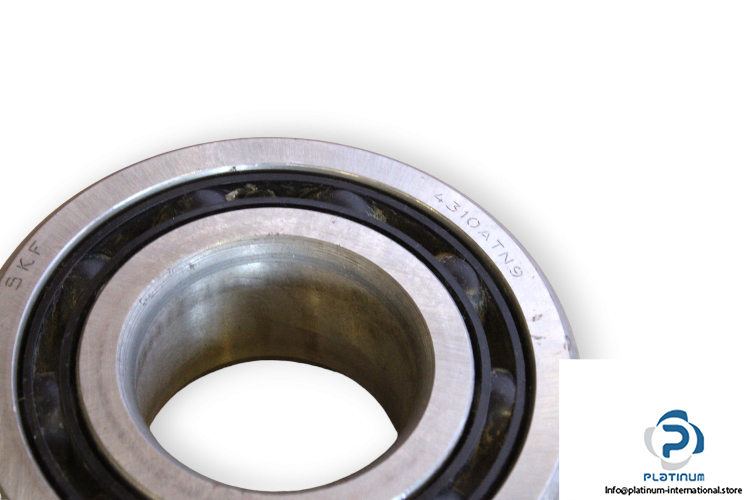

SKF 4310 ATN9 Double ROW Deep Groove Ball Bearing

Manufacturer: SKF
Type: Double Row Deep Groove Ball Bearing
Model: 4310ATN9

Dimensions
Bore Diameter d: 50 mm
Outer diameter D: 110 mm
Width B: 40 mm
Chamfer dimension r_{1,2 min}: 2 mm
Basic load ratings:
Dynamic C: 81.9 kN
Static C₀: 69.5 kN
Fatigue load limit P_u: 2.9 KN
Reference speed: 10000 rpm
Limiting speed: 5300 rpm
Cage: Glass fibre reinforced PA66 cage, rolling element centred
