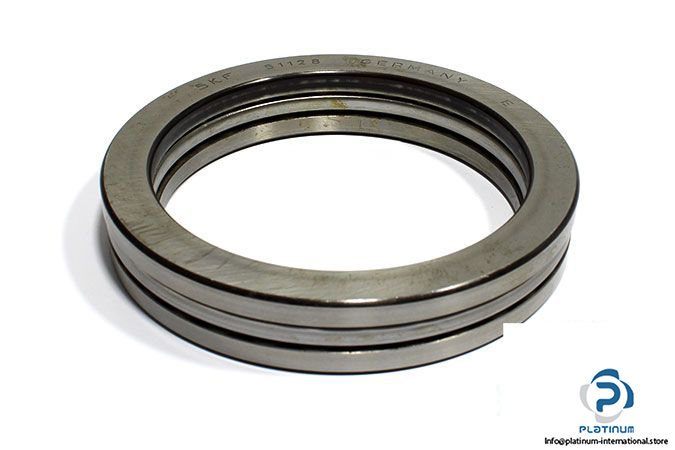

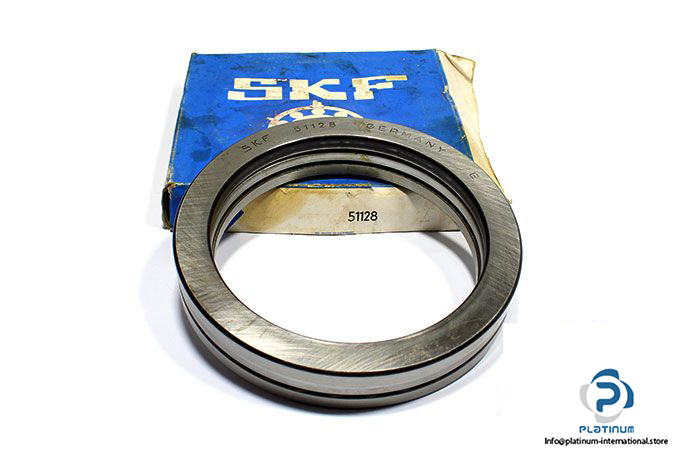

SKF 51128 Thrust Ball Bearing

Manufacturer: SKF

Type: Thrust ball bearings single direction

Model: 51128

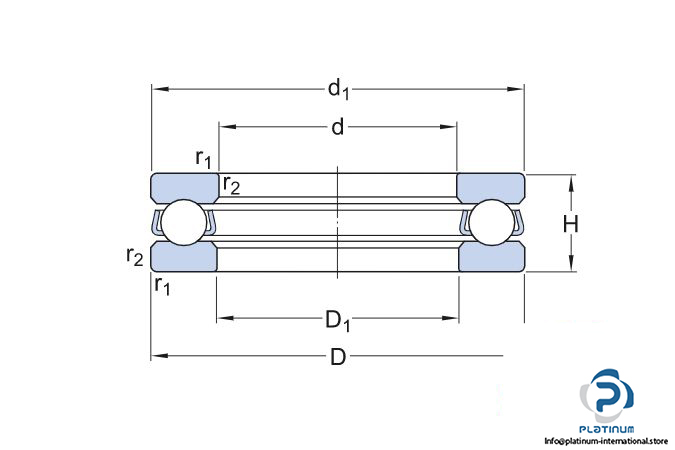

Dimensions

Bore diameter d: 140 mm

Outer diameter D: 180 mm

Height H: 31 mm

Outside diameter shaft washer d₁: 178 mm

Inner diameter housing washer D₁: 142 mm

Minimum chamfer dimension r _1,2: 1 mm

Basic load ratings:

Dynamic C: 111 kN

Static C₀: 440 kN

Fatigue load rating P_u: 12.9 kN

Reference speed: 1800 rpm

Limiting speed: 2600 rpm

Cage: Sheet Metal

Weight: 2 kg
