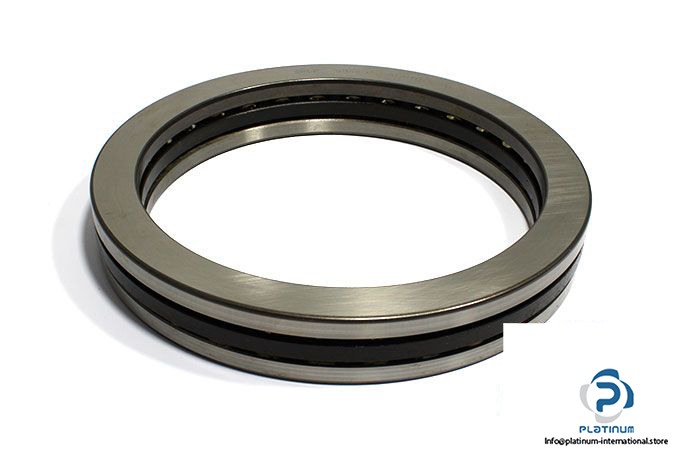

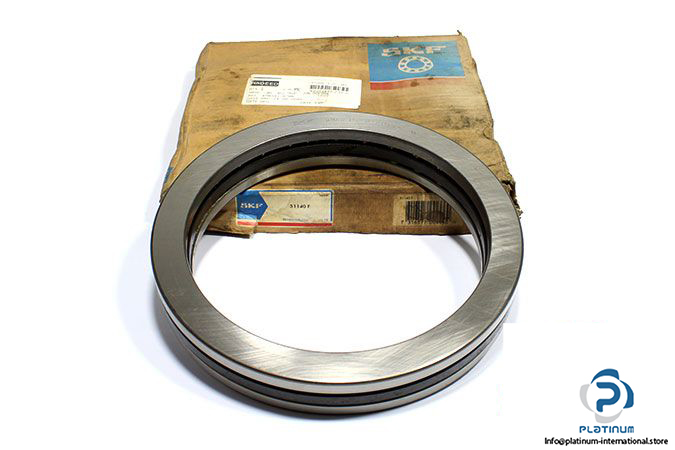

SKF 51140 F Thrust Ball Bearing

Manufacturer: SKF

Type: Thrust ball bearings single direction

Model: 51140-F

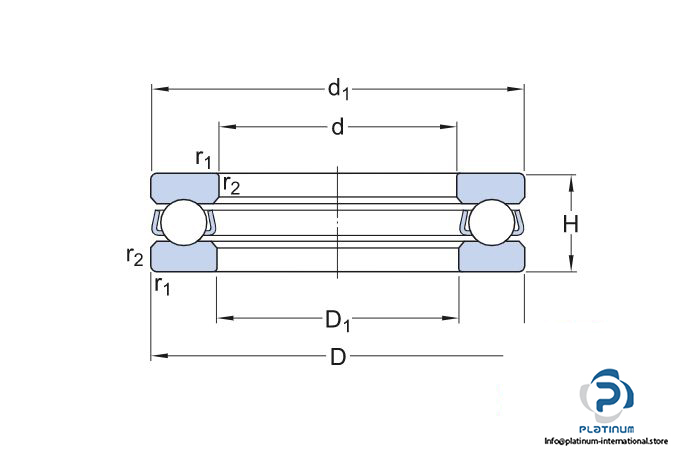

Dimensions

Bore diameter d: 200 mm

Outer diameter D: 250 mm

Height H: 37 mm

Outside diameter shaft washer d₁: 247 mm

Inner diameter housing washer D₁: 203 mm

Minimum chamfer dimension r _1,2: 1.1 mm

Cage: F, Machined steel cage

Weight: 4.25 kg
