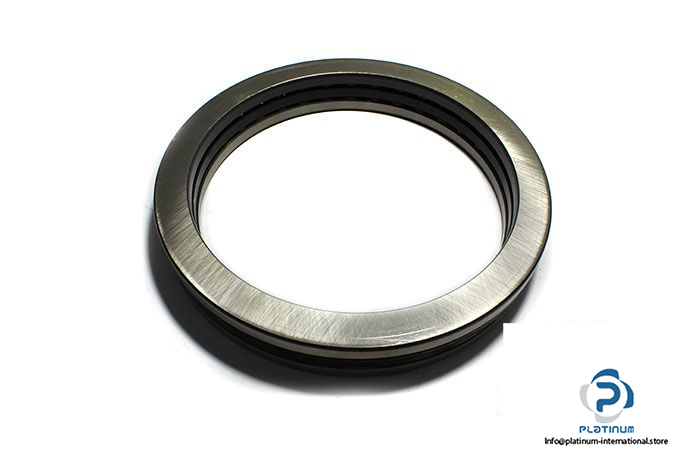

SKF 51152 F Thrust Ball Bearing

Manufacturer: SKF

Type: Thrust ball bearings single direction

Model: 51152F

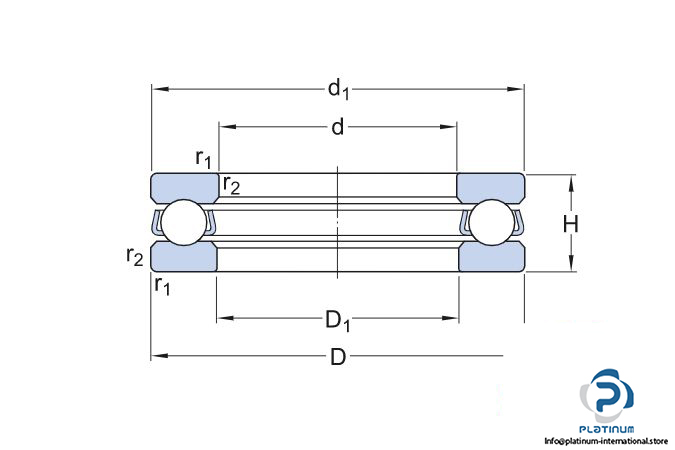

Dimensions

Bore diameter d: 260 mm

Outer diameter D: 320 mm

Height H: 45 mm

Outside diameter shaft washer d₁: 317 mm

Inner diameter housing washer D₁: 263 mm

Minimum chamfer dimension r _1,2: 1.5 mm

Basic load ratings:

Dynamic C: 238 kN

Static C₀: 1100 kN

Fatigue load rating P_u: 24 kN

Reference speed: 1100 rpm

Limiting speed: 1500 rpm

Cage: F, Machined steel cage

Weight: 8.1 kg
