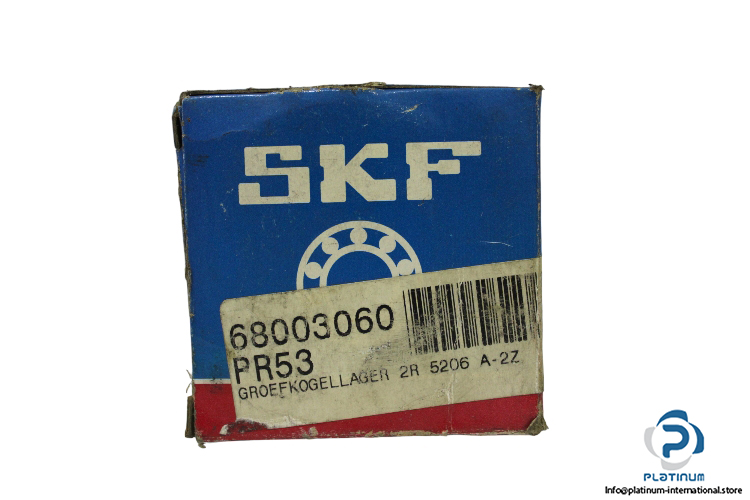

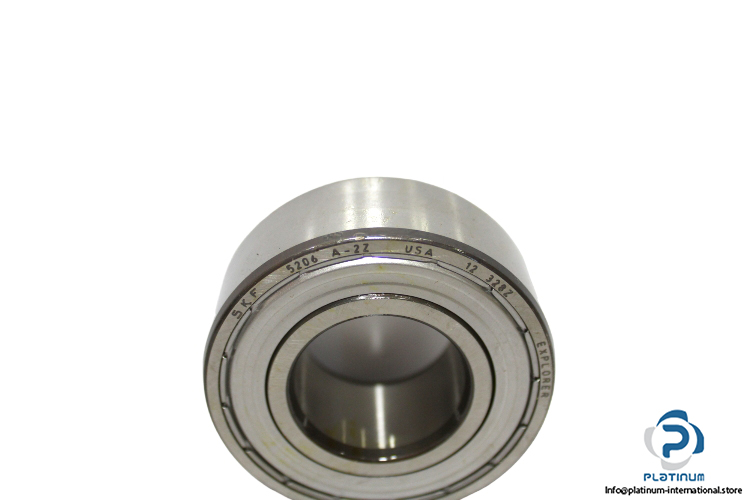

SKF 5206 A-2Z Double ROW Angular Contact Ball Bearing
Manufacturer: SKF
Type: Double Row Angular Contact Ball Bearing
Model: 5206 A 2Z
Replaces: 3206 A-2Z
Dimensions
Bore Diameter d: 30 mm
Outer diameter D: 62 mm
Width B: 23.8 mm
Contact angle: 30 °
Basic load ratings, radial:
Dynamic Cr: 30500 N
Static C0r: 22000 N
Limiting Speed: 10000 rpm
Reference speed: 10000 rpm
Sealing: Non-contact shield on both sides
Ring type: One-piece inner and outer rings
Cage: Sheet metal
