SKF 52206X Thrust Ball Bearing
New
In stock1 unitReady to ship
Thrust Ball Bearing
SKF double direction thrust ball bearing 52206X with sheet metal cage, designed for axial load support in both directions.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

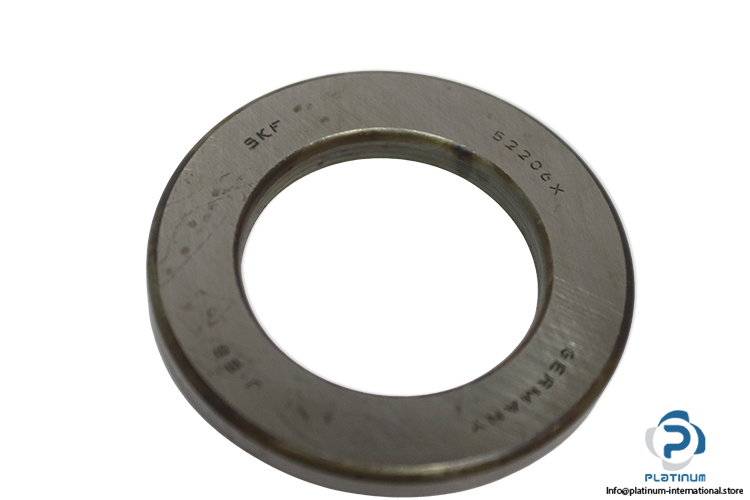

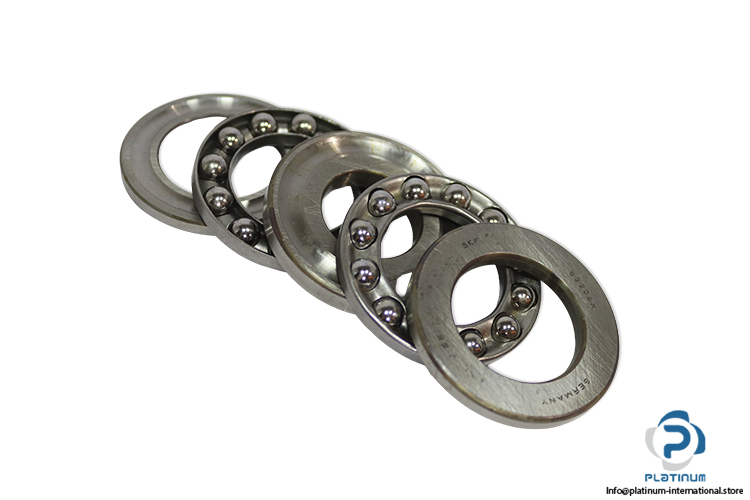

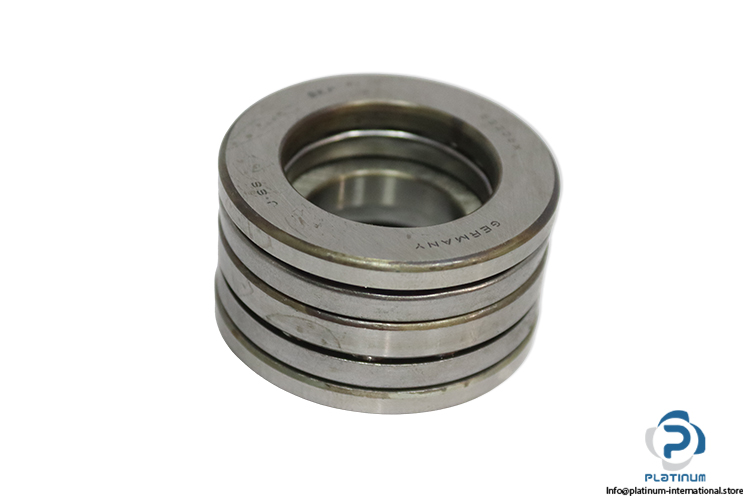

SKF 52206X Thrust Ball Bearing
The SKF 52206X is a double direction thrust ball bearing designed to accommodate axial loads in both directions while providing stable performance and precise operation in industrial applications.
Manufacturer: SKF
Type: Double Direction Thrust Ball Bearing
Model: 52206X
| Bore Diameter (d) | 25 mm |
| Outer Diameter (D) | 52 mm |
| Height (T) | 29 mm |
| Dynamic Load Rating (Cr) | 25.1 kN |
| Static Load Rating (C0r) | 51 kN |
| Fatigue Load Limit | 1.86 kN |
| Limiting Speed | 5000 RPM |
| Reference Speed | 3600 RPM |
| Cage Material | Sheet Metal |
| Suffix | X, Boundary Dimensions Altered To Conform To ISO Standards |
