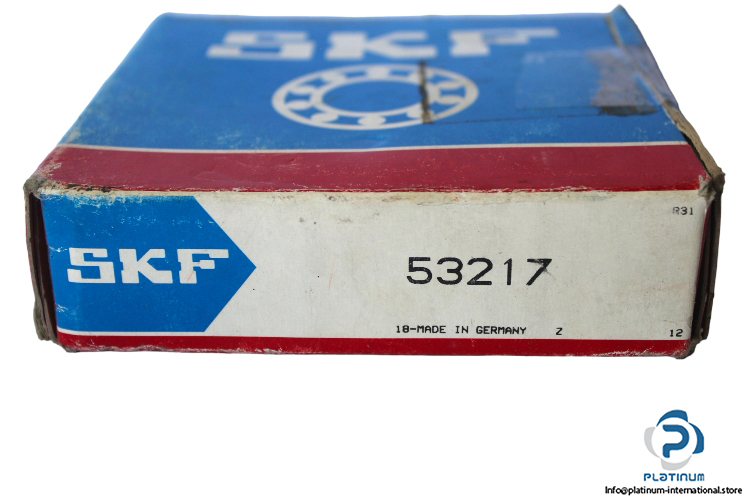

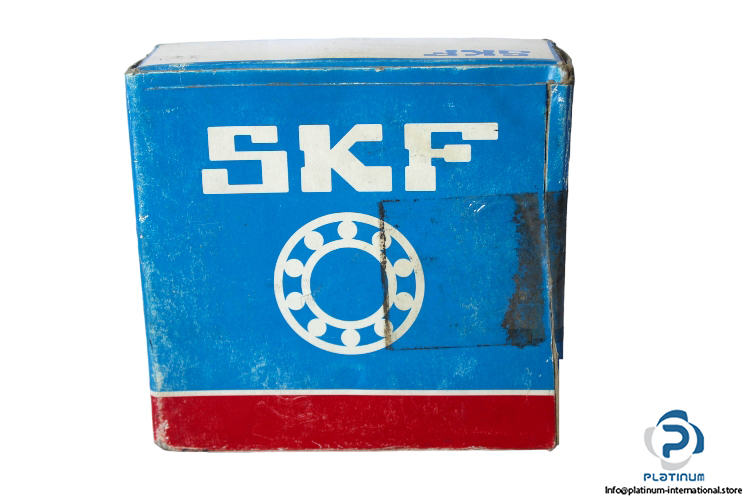

SKF 53217 Thrust Ball Bearing

Manufacturer: SKF

Type: Single direction thrust ball bearing with sphered housing washer

Model: 53217

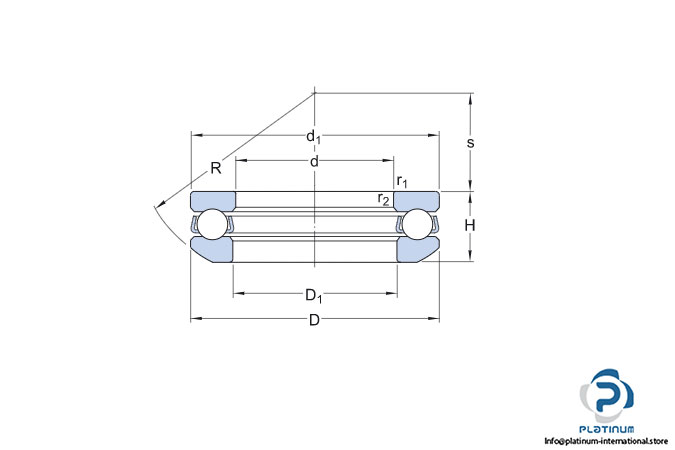

Dimensions:

Bore diameter d: 85 mm

Outer diameter D: 125 mm

Height H: 33.1 mm

Outside diameter shaft washer d₁: 125 mm

Inner diameter housing washer D₁: 88 mm

Minimum chamfer dimension r _1,2: 1 mm

Basic load ratings:

Dynamic C: 97500 N

Static C₀: 257000 N

Fatigue load rating P_u: 9000 N

Reference speed: 2000 rpm

Limiting speed: 3000 rpm

Cage: Sheet Metal
