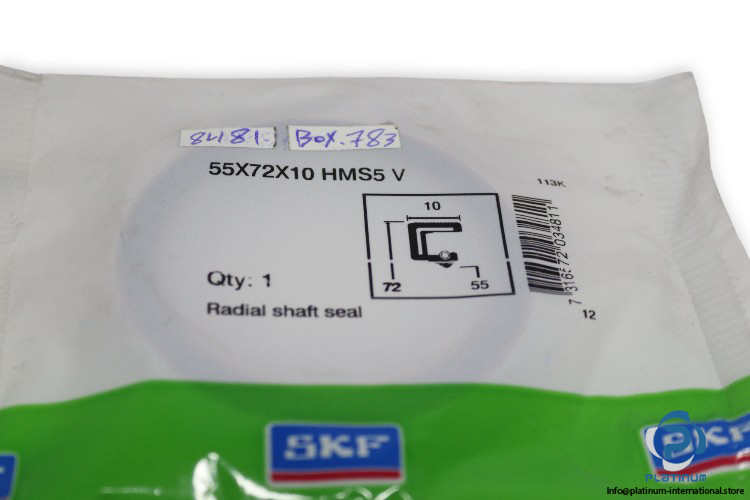

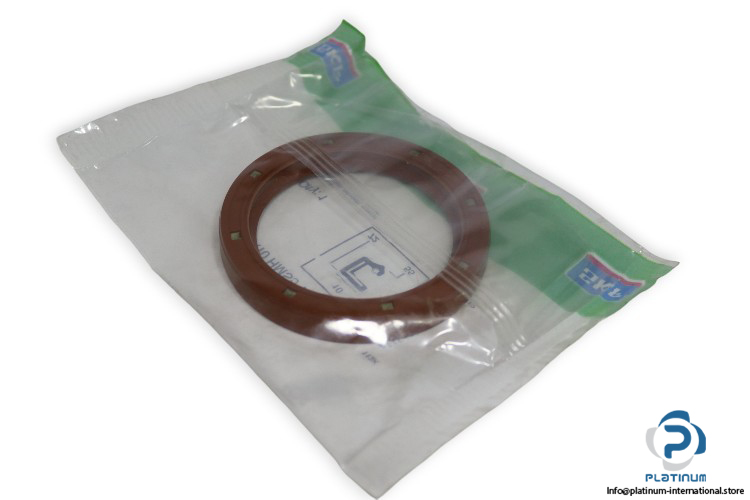

SKF 55X72X10 HMS5 V Radial Shaft Seal

Manufacturer: SKF
Type: Radial shaft seal
Model: 55X72X10 HMS5 V

Type of outside diameter: Rubber metal reinforced
Lip material: Fluoro rubber (FKM)
Seal design: HMS5
Compliance with standard: ISO 6194, DIN 3760
Shaft diameter: 55 mm
Housing bore diameter: 72 mm
Seal width: 10 mm
Operating temperature: min.-25 °C
Operating temperature: max.200 °C
Operating temperature, short periods: max.200 °C
Circumferential speed: max.26.3 m/s
Rotational speed: max.9 120 r/min
Pressure differential: 0.05 N/mm²
