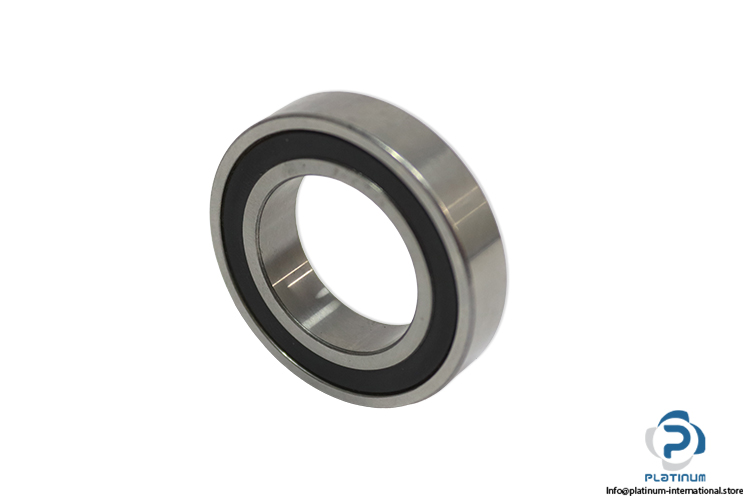

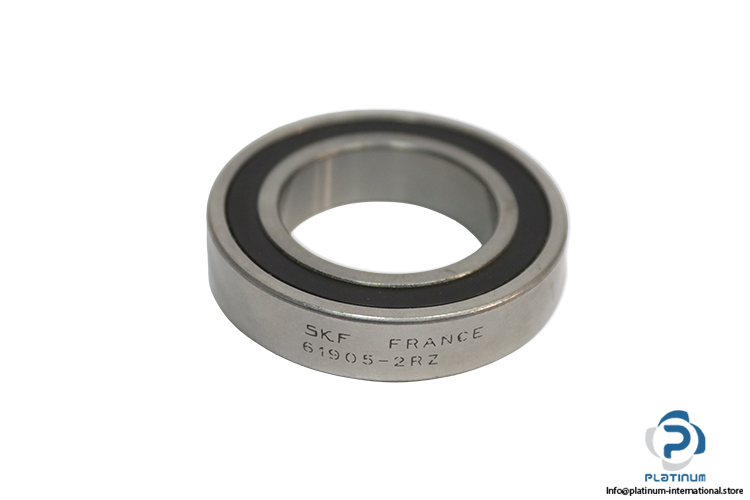

SKF 61905-2RZ Deep Groove Ball Bearing
New
In stock1 unitReady to ship
Deep Groove Ball Bearing
SKF 61905-2RZ deep groove ball bearing with 25 mm bore diameter, non-contact seals on both sides, and high-speed performance for industrial applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
SKF 61905-2RZ Deep Groove Ball Bearing
The SKF 61905-2RZ deep groove ball bearing is designed for high-speed operation and long service life in industrial and mechanical applications. It features non-contact sealing on both sides to reduce friction while protecting against contamination.
Manufacturer: SKF
Type: Deep Groove Ball Bearing
Model: 61905-2RZ
This bearing is commonly used in electric motors, industrial drives, and precision mechanical systems where smooth rotation and high-speed capability are required.
For complete system integration, this bearing can be combined with Servo Motors and Sensors available from Platinum International. Please contact us via ASK for assistance with any inquiries.
| Bore Diameter (d) | 25 mm |
| Outer Diameter (D) | 42 mm |
| Bearing Width (T) | 9 mm |
| Basic Dynamic Load Rating | 7.02 kN |
| Basic Static Load Rating | 4.3 kN |
| Fatigue Load Limit | 0.193 kN |
| Reference Speed | 36,000 r/min |
| Limiting Speed | 18,000 r/min |
| Cage Material | Sheet Metal |
| Sealing | 2RZ, Non-contact Seal on Both Sides |
