SKF 6205-2RSH Deep Groove Ball Bearing

Manufacturer: SKF

Type: Deep Groove Ball Bearing

Model: 6205 2RSH

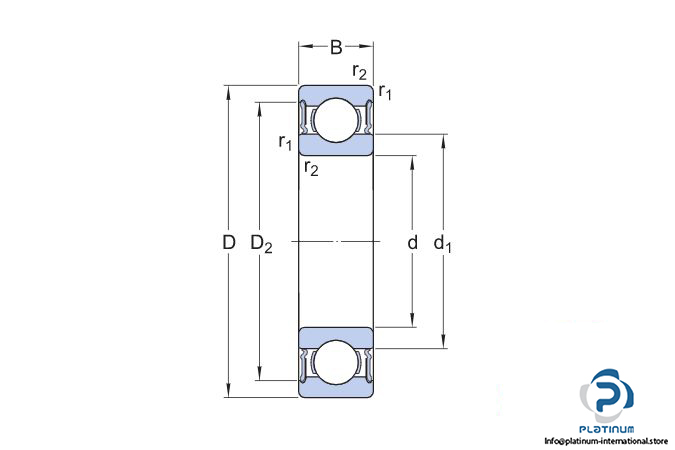

Dimensions

Bore Diameter d: 25 mm

Outer diameter D: 52 mm

Width B: 15 mm

Chamfer dimension r_{1,2 min}: 1 mm

Basic load ratings:

Dynamic C: 14.8 kN

Static C₀: 7.8 kN

Fatigue load limit P_u: 0.335 kN

Limiting speed: 8500 rpm

Seal: Contact seal, NBR, on both sides
