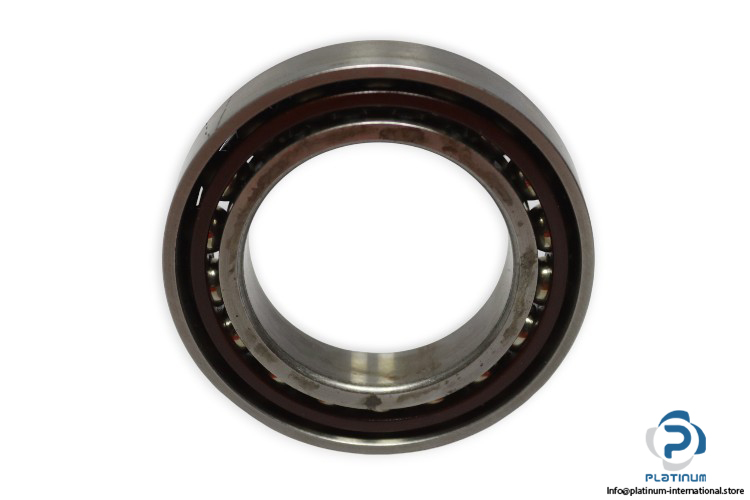

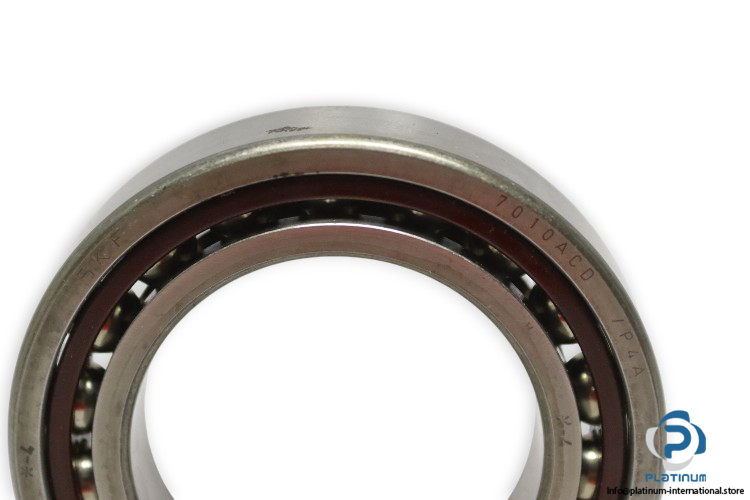

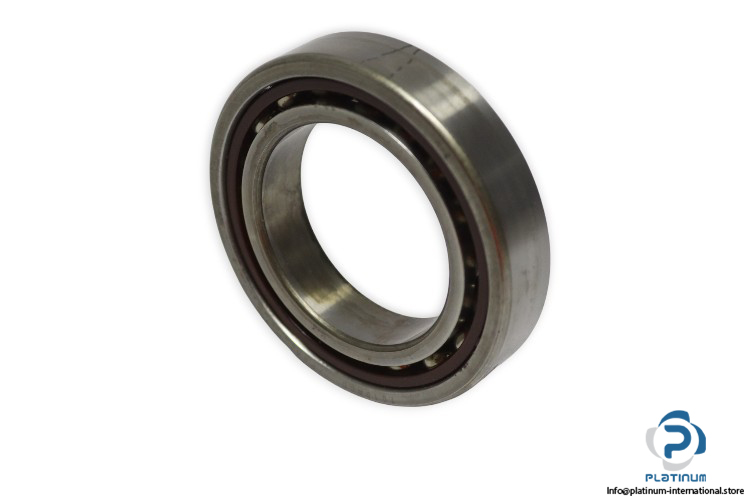

SKF 7010 ACD/P4A Angular Contact Ball Bearing
Manufacturer: SKF
Type: ANGULAR CONTACT BALL BEARING
Model: 7010 ACD P4A
Bore diameter: 50 mm
Outside diameter: 80 mm
Width: 16 mm
Contact angle: 25 °
Basic dynamic load rating: 28.1 kN
Basic static load rating: 23.2 kN
Attainable speed for grease lubrication: 15 000 r/min
Attainable speed for oil-air lubrication: 24 000 r/min
Tolerance class: P4A
Internal Design: ACD, high-capacity basic design
Bearing series: Series 10
