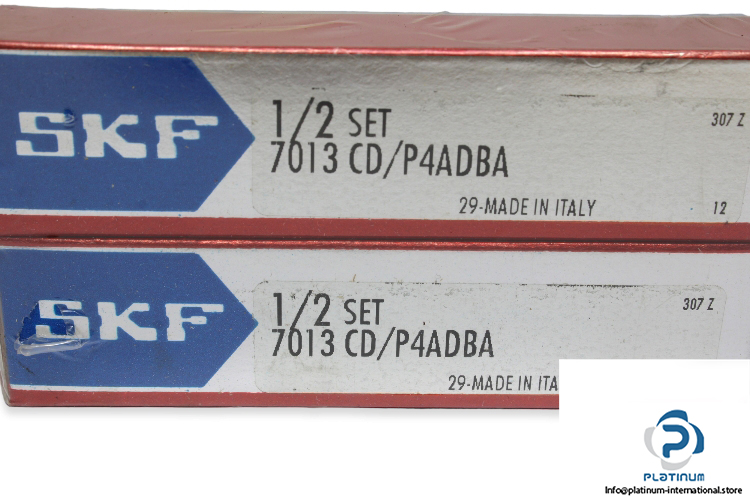

SKF 7013 CD/P4ADBA Angular Contact Ball Bearing

Manufacturer: SKF

Type: Matched set of two super-precision, high-capacity, D design, single row angular contact ball bearings

Model: 7013 CD P4A DBA



Dimensions:

Bore Diameter d: 65 mm

Outer diameter D: 100 mm

Width: 36 mm

Contact angle: 15 °

Dynamic load rating: 67.6 kN

Static load rating: 75 kN

Matched arrangement: Back-to-back

Preload: Extra light preload

Tolerance class: P4A/DB

Cage material: Glass fibre reinforced PA66 cage
