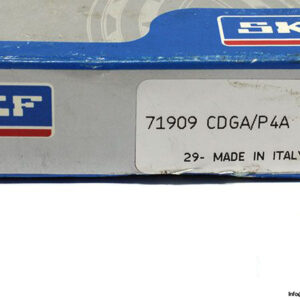

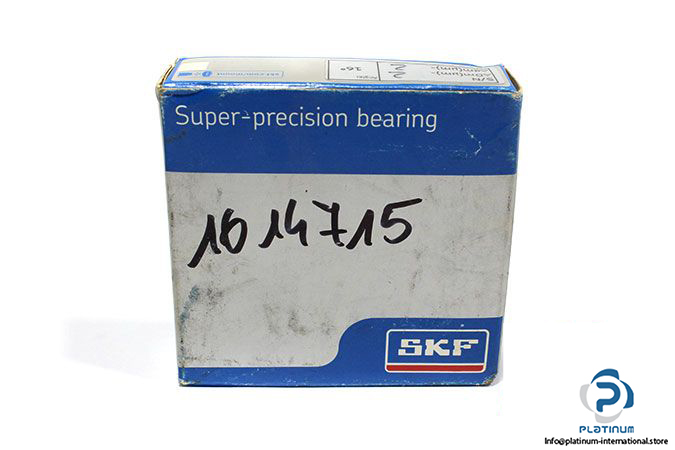

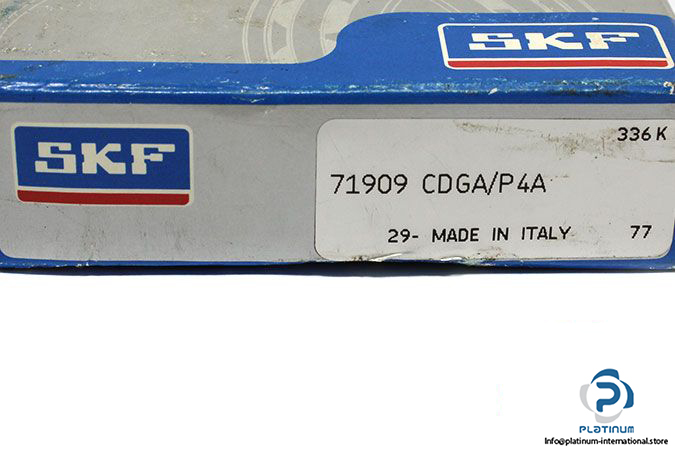

SKF 71909 CDGA/P4A Angular Contact Ball Bearing
Manufacturer: SKF
Type: Super-precision, high-capacity, universally matchable single row angular contact ball bearing
Model: 71909CDGA/P4A
Dimensions:
Bore Diameter d: 45 mm
Outer diameter D: 68 mm
Width: 12 mm
Contact angle: 15 °
Dynamic load rating: 13 kN
Static load rating: 9.5 kN
Fatigue load limit: 0.4 kN
Limiting speed for grease lubrication: 19000 RPM
Limiting speed for oil lubrication: 32000 RPM
Tolerance class: P4A
Cage material: Cotton fabric reinforced phenolic resin cage
