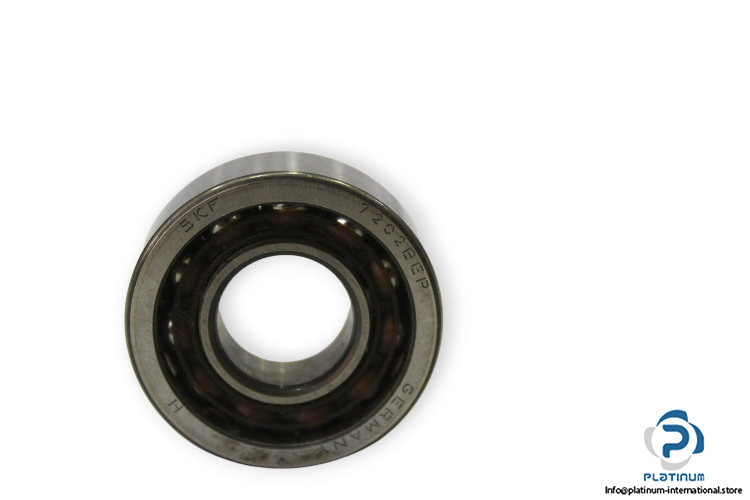

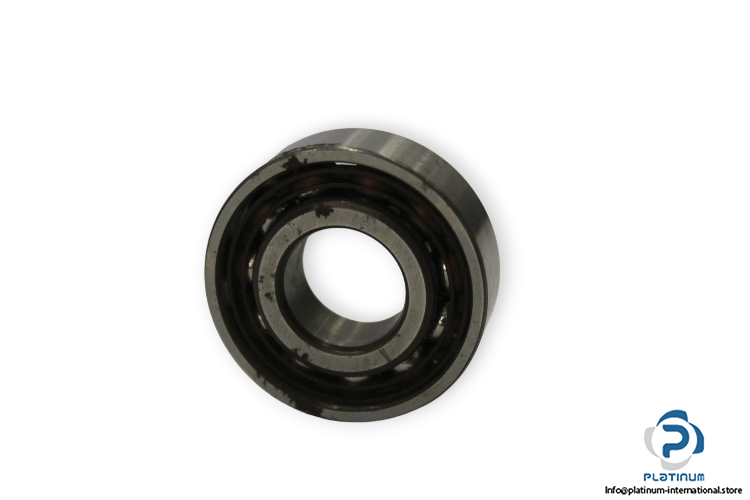

SKF 7202 BEP Angular Contact Ball Bearing

Manufacturer: SKF

Type: Angular Contact Ball Bearing

Model: 7202BEP

Dimensions

Bore Diameter d: 15 mm

Outer diameter D: 35 mm

Width B: 11 mm

Contact angle α: 40 °

Basic load ratings:

Dynamic C_r: 8320 N

Static C_0r: 4400 N

Limiting speed: 24000 rpm

Reference speed: 24000 rpm

Cage: Non-metallic

Contact type: Normal contact (two-point contact)

Ring type: One-piece inner and outer rings
