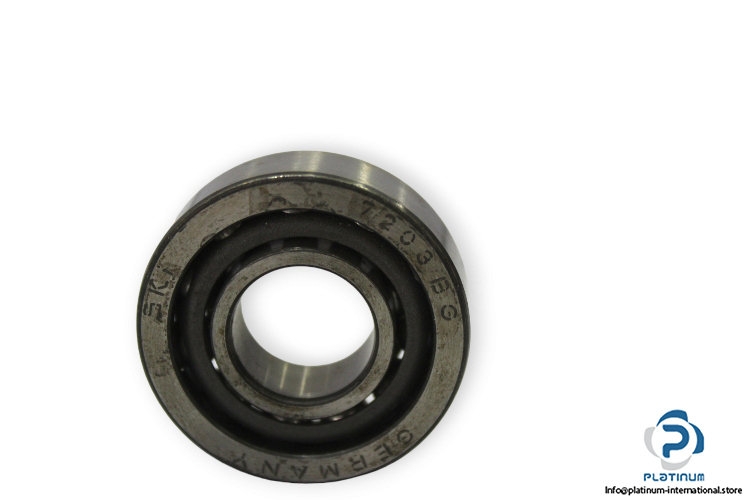

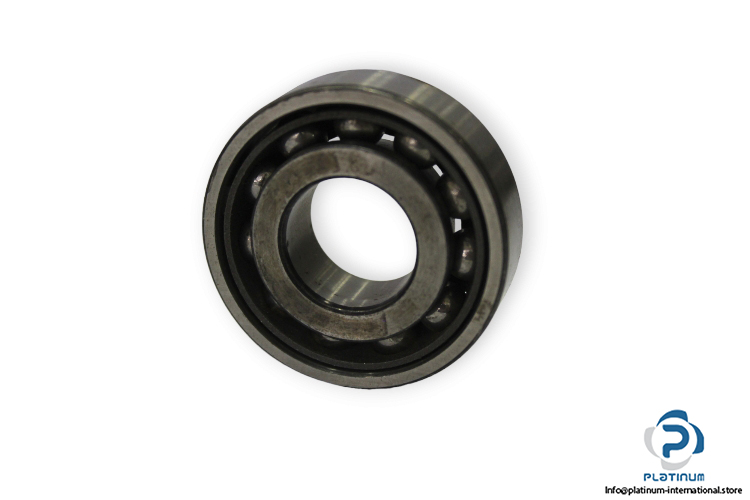

SKF 7203 BG Angular Contact Ball Bearing

Manufacturer: SKF

Type: Angular Contact Ball Bearing

Model: 7203BG

Replaces: 7203 BECBP



Dimensions

Bore Diameter d: 17 mm

Outer diameter D: 40 mm

Width B: 12 mm

Contact angle α: 40 °

Basic load ratings:

Dynamic C_r: 11000 N

Static C_0r: 5850 N

Limiting speed: 22000 rpm

Reference speed: 22000 rpm
