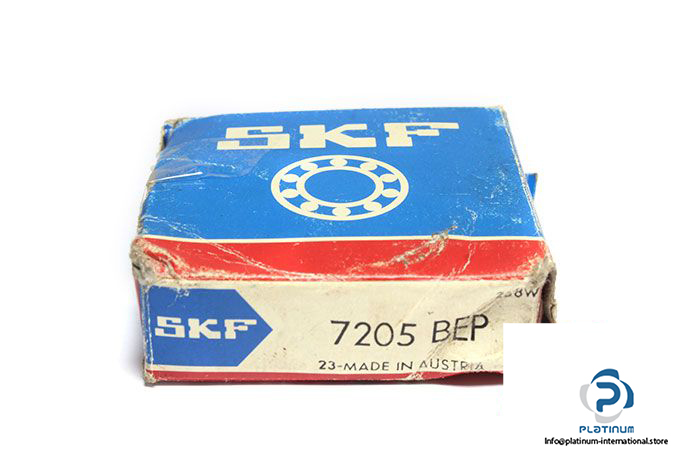

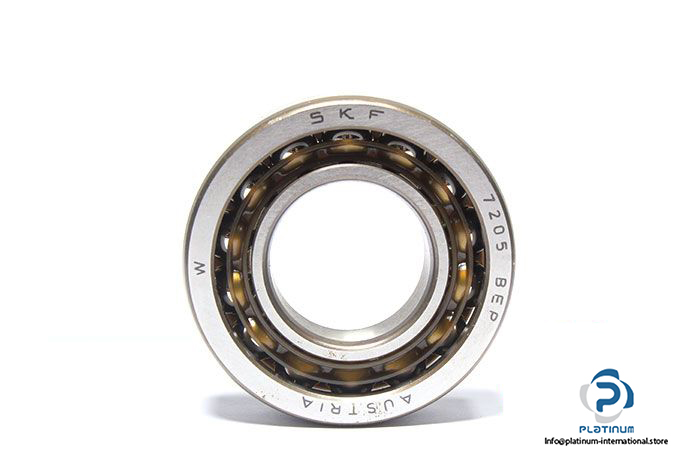

SKF 7205 BEP Angular Contact Ball Bearing
Manufacturer: SKF
Type: ANGULAR CONTACT BALL BEARING
Model: 7205-BEP
Bore Diameter: 25 mm
Outer diameter: 52 mm
Width: 15 mm
Contact Angle: BE, 40°
Basic load ratings:
Dynamic Cr: 14.8 kN
Static C0r: 9.3 kN
Fatigue load rating: 0.4 kN
Limiting speed: 15000 r/min
Reference speed: 16 000 r/min
Cage: Non-metallic, Glass fiber reinforced PA66 cage, ball centered
Tolerance class: Normal
