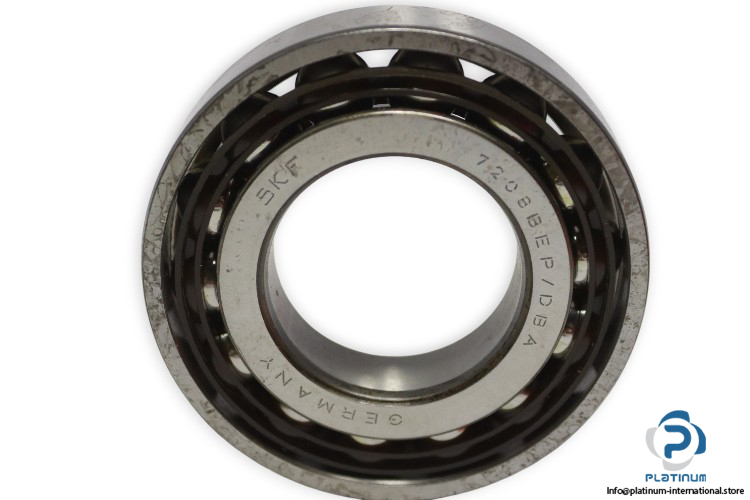

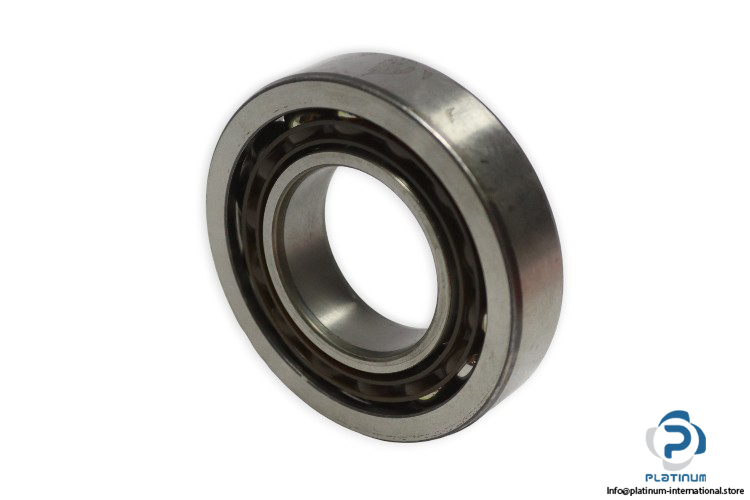

SKF 7208 Bep/Dba Angular Contact Ball Bearing

Manufacturer:  SKF
Type: ANGULAR CONTACT BALL BEARING
Model: 7208 BEP DBA

Dimensions
Bore Diameter d: 40 mm
Outer diameter D: 80 mm
Width B: 18 mm
Contact angle α: BE, 40 °
Arrangement: DB, Set of two matched bearings arranged back-to-back
Basic load ratings:
Dynamic C_r: 34.5 kN
Static C_0r: 24 kN
Limiting speed: 10000 r/min
Reference speed: 10000 r/min
Cage: Non-metallic, Glass fiber reinforced PA66 cage, rolling element centered
