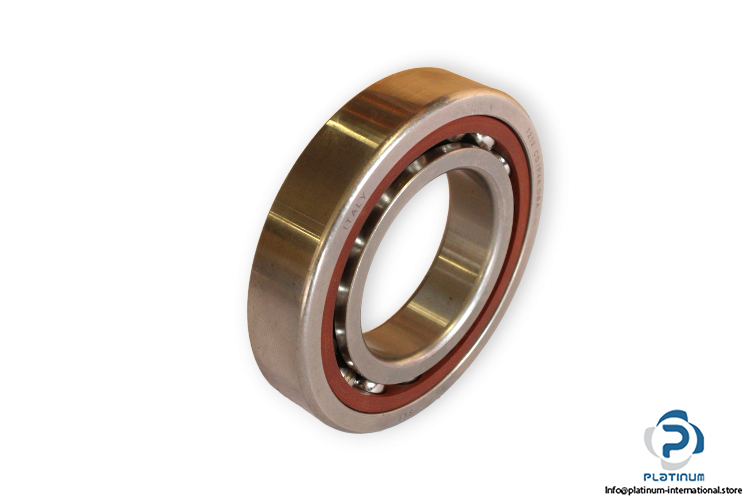

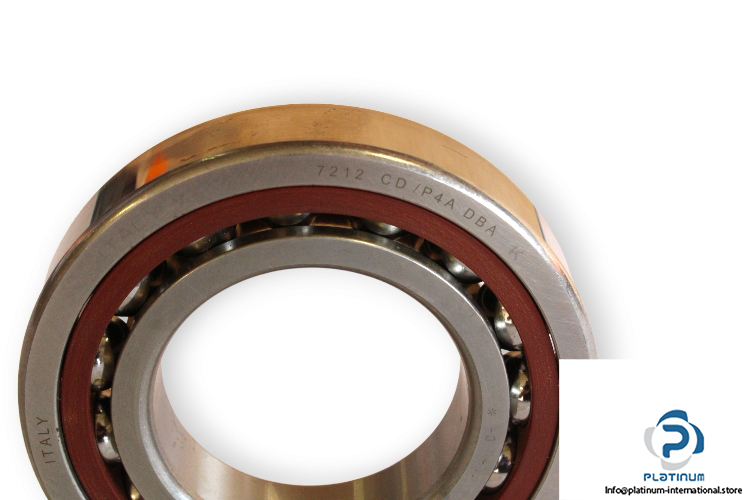

SKF 7212 CD/P4ADBA Angular Contact Ball Bearing
Manufacturer: SKF
Type: Matched set of two super-precision, high-capacity, D design, single row angular contact ball bearings
Model: 7212CD/P4ADBA
Dimensions
Bore Diameter d: 60 mm
Outer diameter D: 110 mm
Width B: 44 mm
Contact angle α: 15°
Basic load ratings:
Dynamic Cr: 93600 N
Static C0r: 93000 N
Attainable speed for grease lubrication: 13000 rpm
Attainable speed for oil-air lubrication: 20000 rpm
Tolerance class: P4A
Design: High-capacity D
