SKF 7214 BEP Angular Contact Ball Bearing
New
In stock1 unitReady to ship
Angular Contact Ball Bearing
SKF single row angular contact ball bearing with 40° contact angle, designed for combined radial and axial loads in high-speed industrial applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

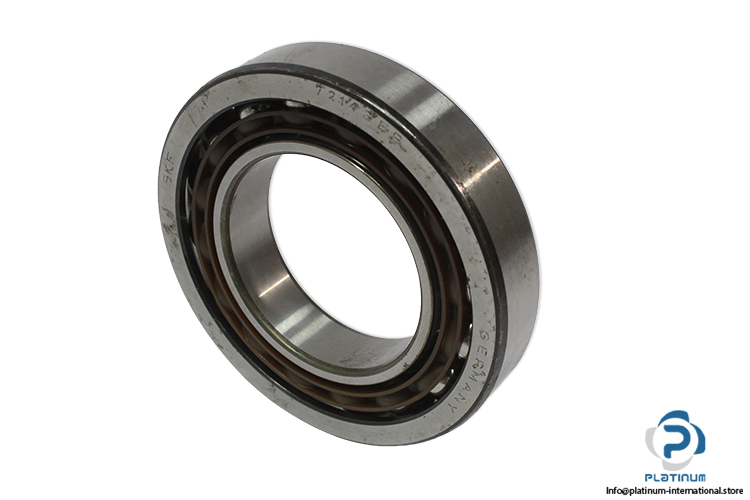

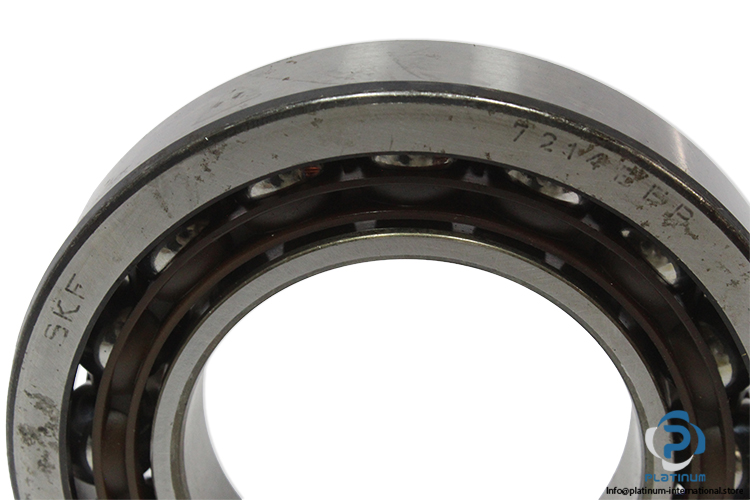

SKF 7214BEP Angular Contact Ball Bearing
The SKF 7214BEP is a high-performance single row angular contact ball bearing designed for applications requiring combined radial and axial load support. With a 40° contact angle, this bearing ensures optimal performance in high-speed and precision industrial systems.
Manufacturer: SKF
Type: Single Row Angular Contact Ball Bearing
Model: 7214BEP
| Bore Diameter d | 70 mm |
| Outer Diameter D | 125 mm |
| Width B | 24 mm |
| Contact Angle | 40 Degree |
| Dynamic Load Rating (Cr) | 67.6 kN |
| Static Load Rating (C0r) | 56 kN |
| Fatigue Load Limit | 2.36 kN |
| Reference Speed | 6300 r/min |
| Limiting Speed | 6000 r/min |
| Locating Feature, Outer Ring | Without |
| Matched Arrangement | No |
| Universal Matching Bearing | No |
| Axial Internal Clearance | Not Applicable |
| Tolerance Class | Normal |
| Material | Bearing Steel |
| Recommendation | Ideal choice for high-speed industrial applications requiring precise axial load handling and long service life. |
