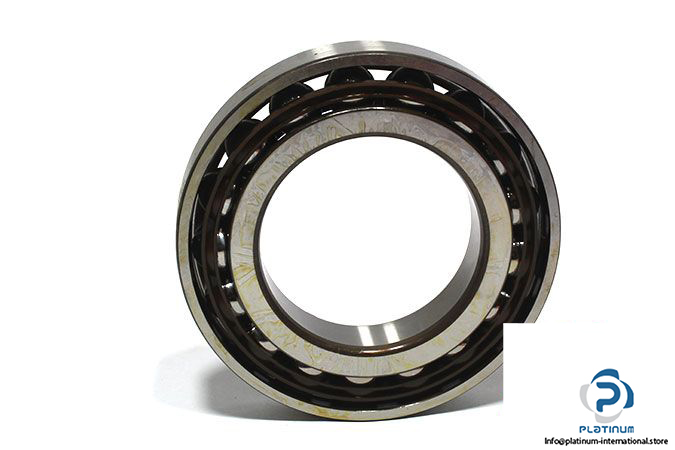

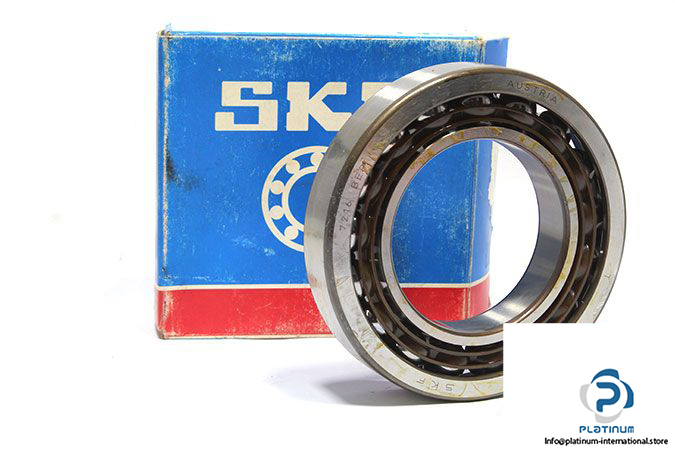

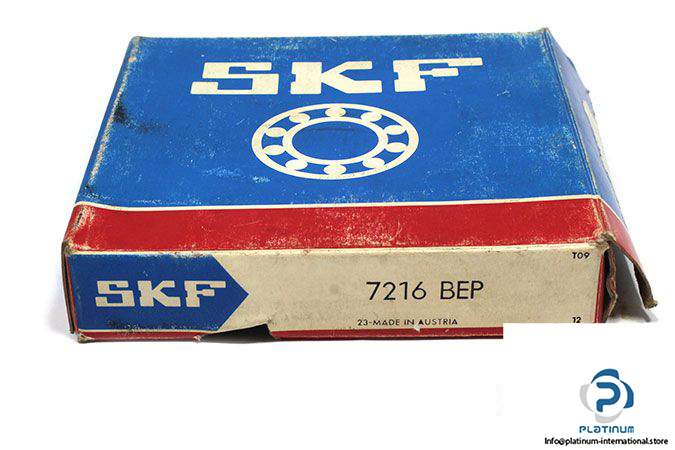

SKF 7216 BEP Angular Contact Ball Bearing

Manufacturer: SKF

Type: Angular contact Ball Bearing

Part No: ‎7216 BEP ‎

Bore Diameter: 80 mm

Outer diameter: 140 mm

Width: 26 mm

Chamfer r_min: 2 mm

Contact Angle: 40°

Basic load ratings:

Dynamic C_r: 80.6 kN

Static C_0r: 69.5 kN

Fatigue load rating: 2.8 kN

Limiting speed: 5300 rpm

Cage design: Glass fiber reinforced PA66 cage, ball centred

Weight: 1.5 kg
