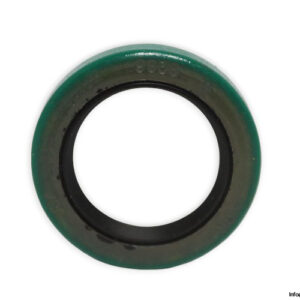

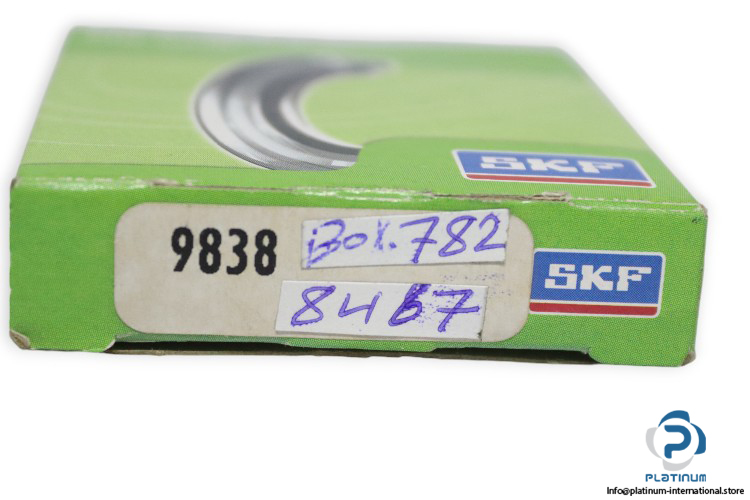

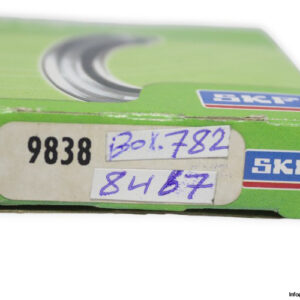

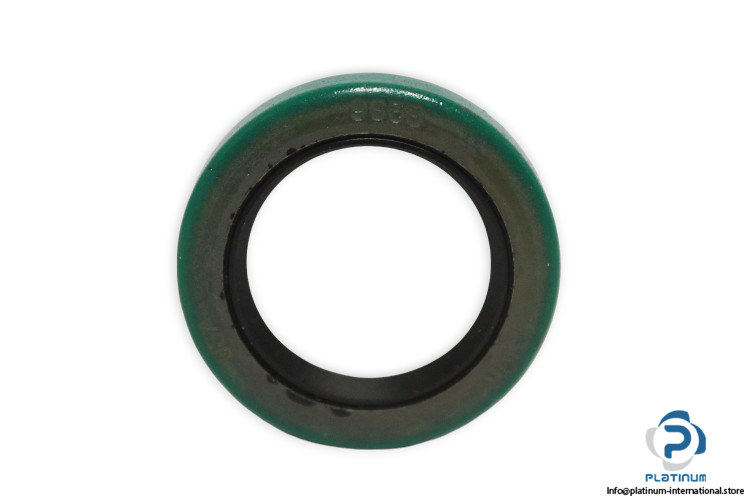

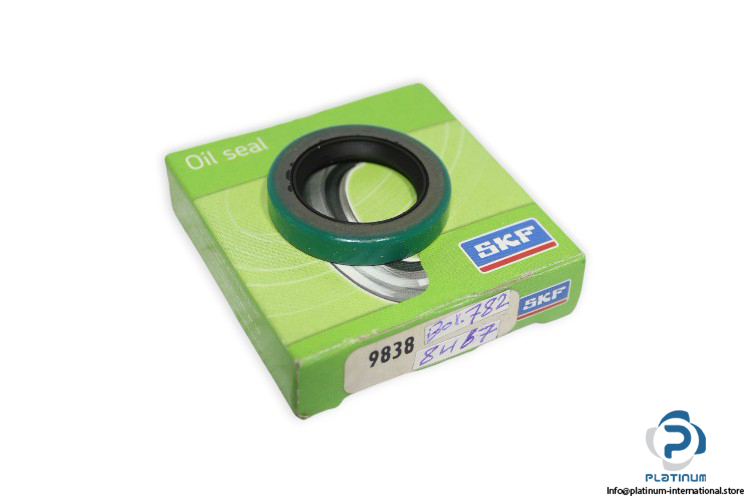

SKF 9838 Radial Shaft Seal

Manufacturer: SKF
Type: Radial shaft seal
Part no.: 9838

Type of outside diameter: Metal-cased with sealant coating on the outside diameter
Lip material: Nitrile rubber (NBR)
Seal design: CRWA1
Shaft diameter: 25.4 mm
Housing bore diameter: 36.5 mm
Seal width: 6.35 mm
Operating temperature: min.-40 °C
Operating temperature: max.100 °C
Circumferential speed: max.5.09 m/s
Rotational speed: max.3 840 r/min
Pressure differential: 0.07 N/mm²
