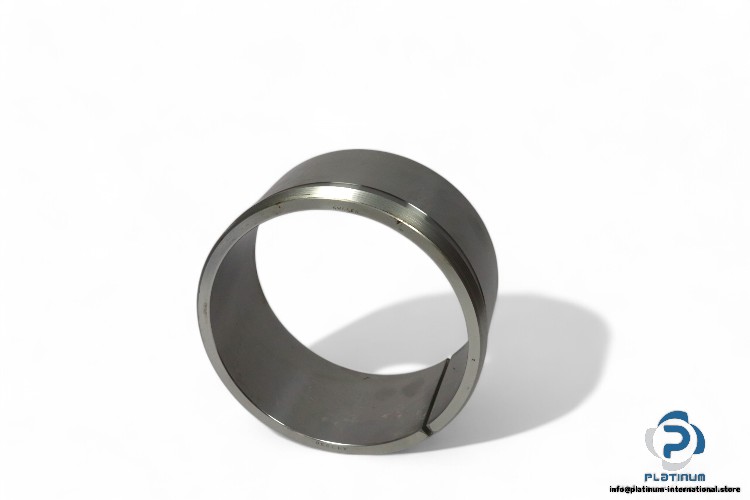

SKF AH 3036 Withdrawal Sleeve
New
In stock3 unitsReady to ship
Withdrawal Sleeve
The SKF AH 3036 Withdrawal Sleeve features a 170 mm bore diameter, 180 mm small taper, and M190x3 thread, providing secure and easy mounting and dismounting of bearings on tapered shafts.1703036AHbearingborediameterDismountingEasyExternalM190x3mmMountingSecureshaftSKFsleeveTapertaperedThreadWithdrawal
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
SKF AH 3036 Withdrawal Sleeve
The SKF AH 3036 Withdrawal Sleeve is designed for easy mounting and dismounting of bearings, especially when bearings need to be mounted on tapered shafts. This high-quality sleeve ensures a secure fit, even under heavy load conditions.
Manufacturer: SKF
Type: WITHDRAWAL SLEEVE
Model: AH 3036
This SKF withdrawal sleeve is ideal for applications requiring easy assembly and disassembly of bearings, designed to withstand the demands of various heavy-duty industries. It features a small taper and a high-quality thread design for secure fitting on tapered shafts.

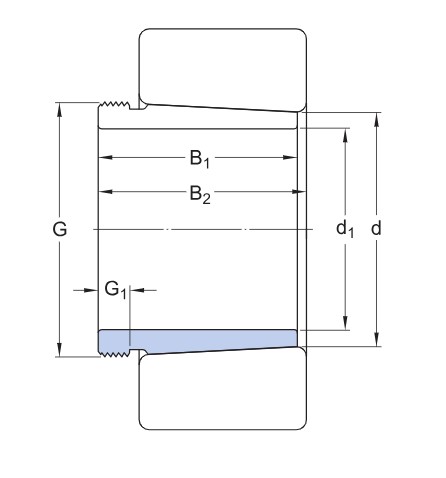

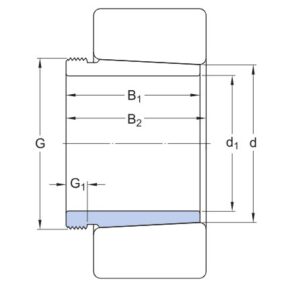

| Bore Diameter (d1) | 170 mm |
| Width | 92 mm |
| Outside Diameter Small Taper (d) | 180 mm |
| Thread (G) | M190x3 |
| Length Thread (G1) | 17 mm |
| External Taper | 1:12 |
