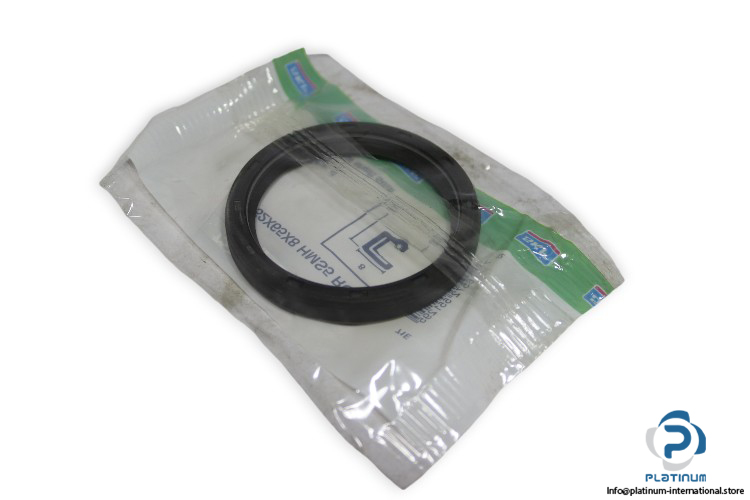

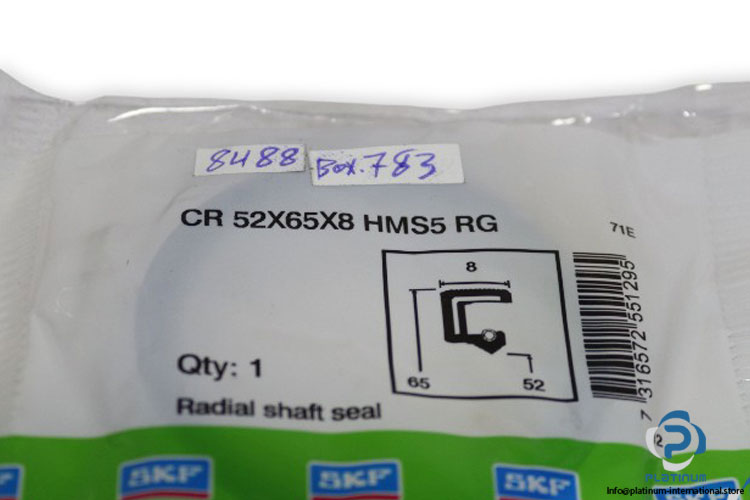

SKF CR 52X65X8 HMS5 RG Radial Shaft Seal

Manufacturer: SKF
Type: Radial shaft seal
Model: CR 52X65X8 HMS5 RG

Type of outside diameter: Rubber metal reinforced
Lip material: Nitrile rubber (NBR)
Seal design: HMS5
Compliance with standard: ISO 6194, DIN 3760
Shaft diameter: 52 mm
Housing bore diameter: 65 mm
Seal width: 8 mm
Operating temperature: min.-40 °C
Operating temperature: max.100 °C
Operating temperature, short periods: max.120 °C
Circumferential speed: max.8 m/s
Rotational speed: max.2 940 r/min
Pressure differential: 0.05 N/mm²
