SKF FY 35 Square Flanged Ball Bearing Unit
New
In stock1 unitReady to ship
Square Flanged Ball Bearing Unit
SKF FY35 square flanged ball bearing unit with 35 mm bore, set screw locking, and cast iron housing for industrial shaft support applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

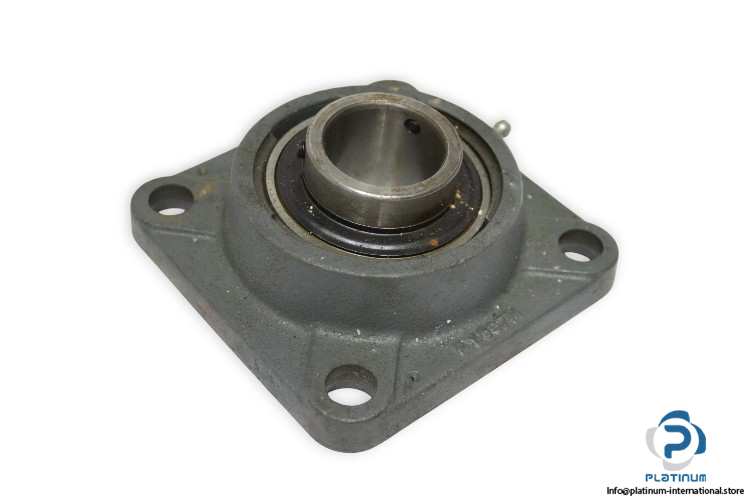

SKF FY35 Square Flanged Ball Bearing Unit
The SKF FY35 square flanged ball bearing unit is designed to provide reliable shaft support and secure mounting in industrial applications. It combines a robust cast iron housing with an insert ball bearing to ensure stable operation and long service life.

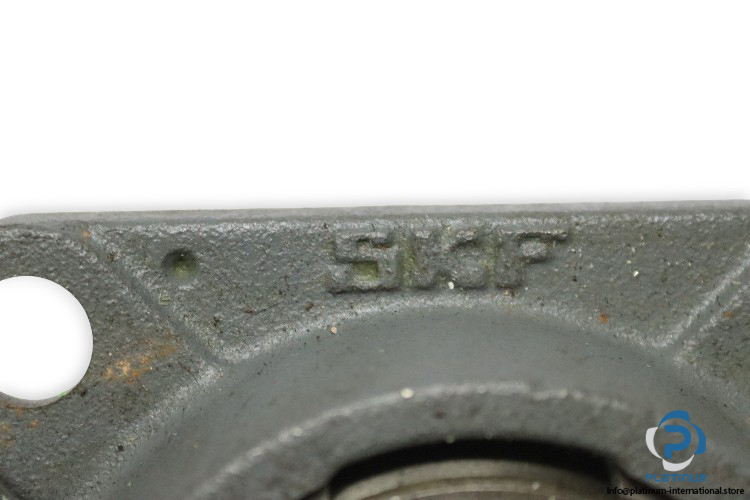

Manufacturer: SKF
Type: Square Flanged Ball Bearing Unit
Model: FY35

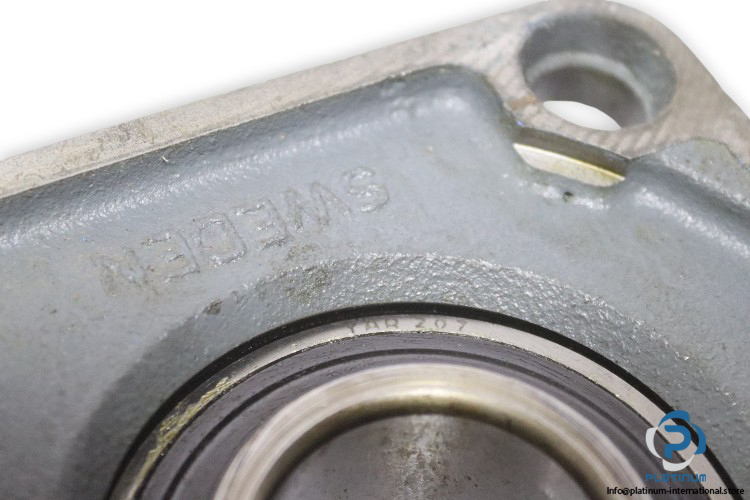

Bearing Number: YAR207

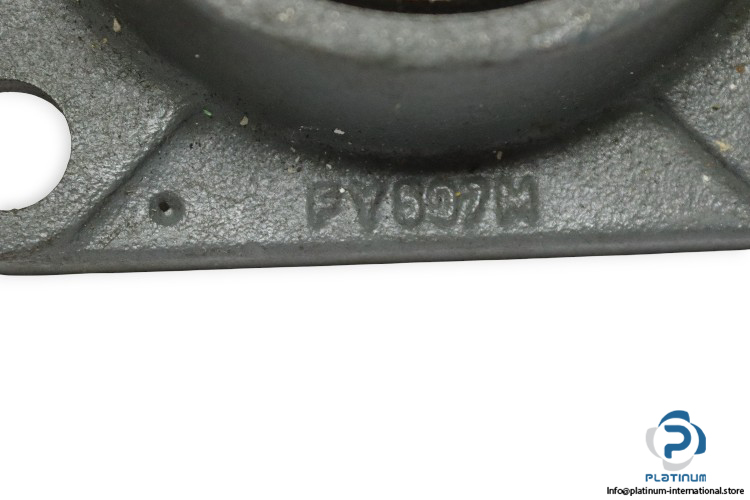

Housing Number: FY507M
| Bore Diameter (d) | 35 mm |
| Bolt Hole Center Distance (J) | 92 mm |
| Spherical Seating Diameter | 72 mm |
| Housing Overall Width | 34.5 mm |
| Overall Length (L) | 118 mm |
| Attachment Bolt Hole Diameter (N) | 14 mm |
| Locking Device | Set Screw |
| Housing Material | Cast Iron |
