SKF Fytb 35FM Oval Flanged Ball Bearing Unit
New
In stock3 unitsReady to ship
44,44$
Oval Flanged Ball Bearing Unit
The SKF FYTB 35 FM with YET 207 bearing insert is an oval flanged unit made of cast iron, featuring a 35 mm bore, high load capacity, and double-sealed design for reliable industrial applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

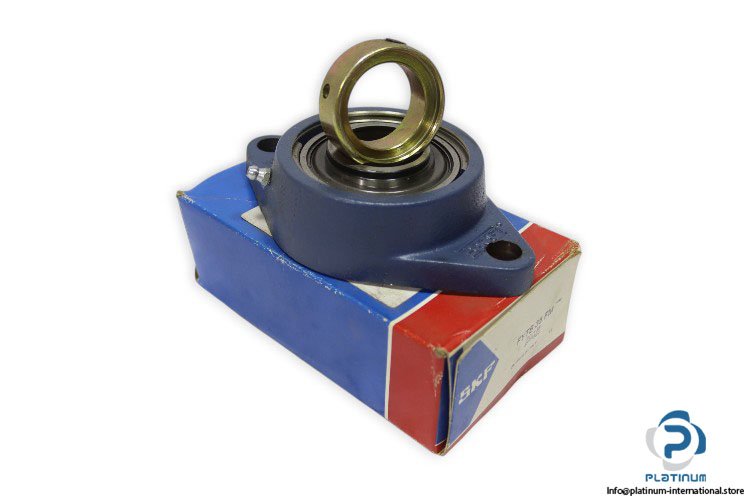

SKF FYTB 35 FM Oval Flanged Ball Bearing Unit
The SKF FYTB 35 FM is a high-quality oval flanged ball bearing unit designed for easy installation and reliable performance in demanding industrial applications. Featuring a YET 207 bearing insert, this unit provides excellent load-carrying capacity, long service life, and smooth operation. The robust cast iron housing ensures durability, while the double-sealed bearing design protects against contaminants and moisture.
Manufacturer: SKF
Type: Oval Flanged Ball Bearing Unit
Model: FYTB 35 FM

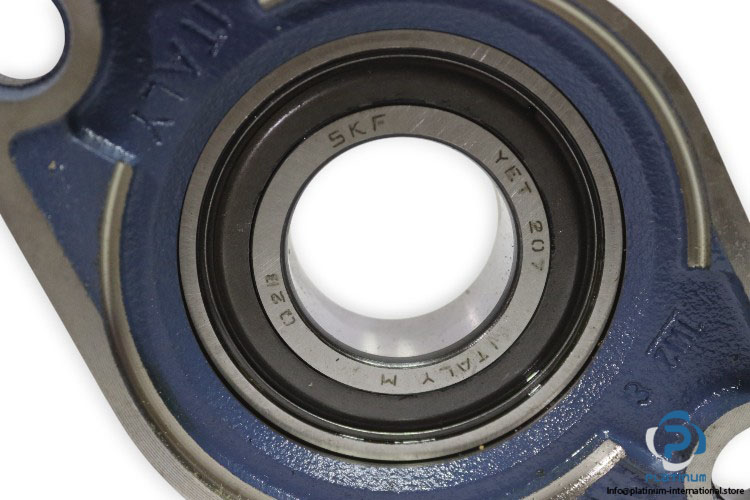

Bearing No.: YET 207
| Bore Diameter (d) | 35 mm |
| Width of Housing (A) | 34.5 mm |
| Width of Inner Ring (B) | 25.4 mm |
| Overall Bearing Width (B1) | 38.9 mm |
| Centre Distance Between Bolt Holes (J) | 130 mm |
| Overall Length (L) | 96 mm |
| Overall Height (H) | 156 mm |
| Diameter of Attachment Bolt Hole (N) | 14 mm |
| Overall Width (T) | 50.4 mm |
| Basic Dynamic Load Rating (C) | 25.5 kN |
| Basic Static Load Rating (C0) | 15.3 kN |
| Fatigue Load Limit (Pu) | 0.655 kN |
| Limiting Speed | 5300 r/min |
| Housing Type | Flanged |
| Flanged Housing Type | Oval |
| No. of Bolt Holes | 2 |
| Material, Housing | Cast Iron |
| Material, Bearing | Bearing Steel |
| Sealing, Bearing | Seal on both sides |
| Sealing, Unit | Optional end cover |
